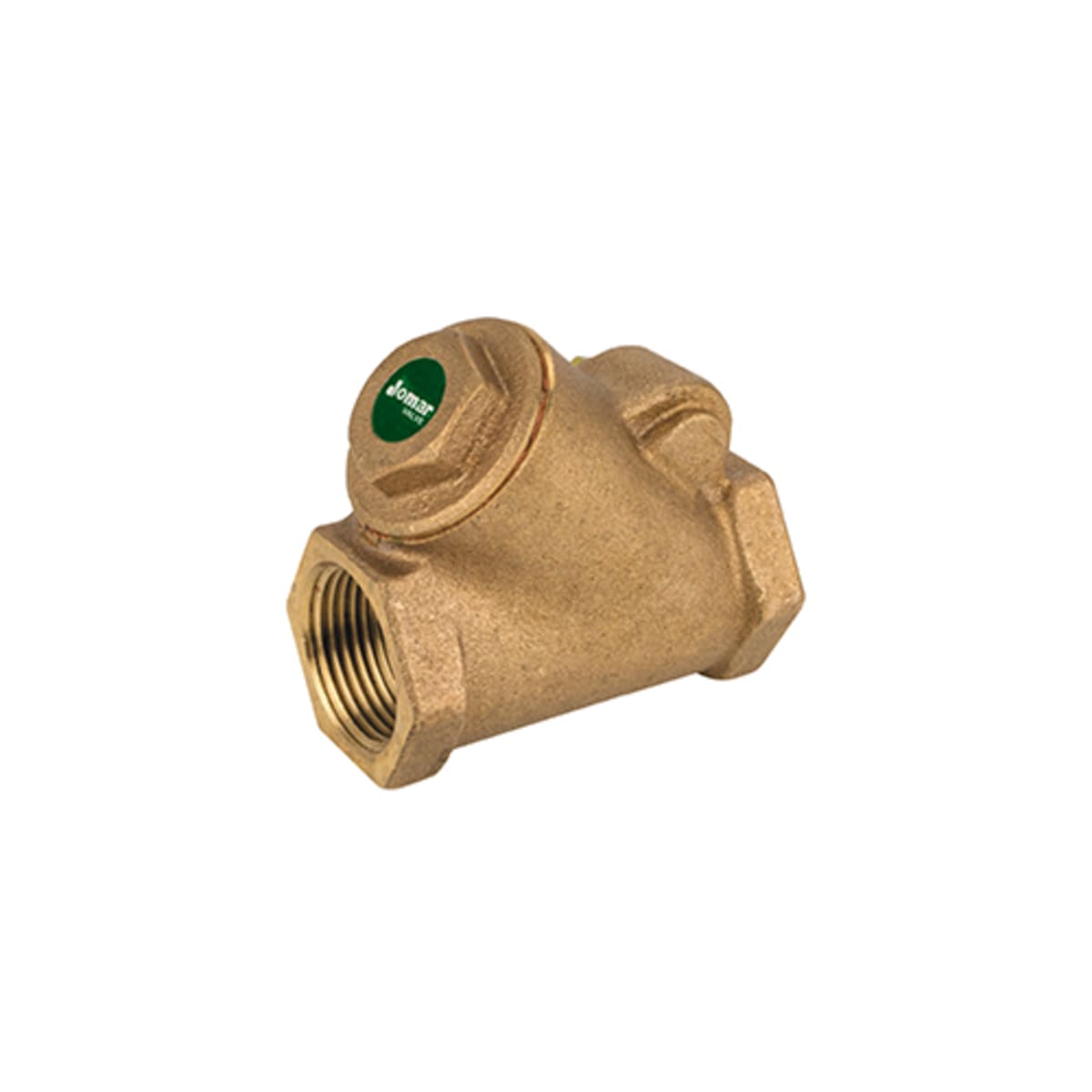

Jomar 105-305G Y-Pattern Swing Check Valve, Threaded Connection, Class 150, 300 WOG

Product Description

The Jomar 105-305G is a Y-pattern swing check valve designed for threaded connections. It is suitable for various applications in plumbing and industrial systems. This valve has a pressure rating of Class 150 and a WOG rating of 300. It is compliant with low lead standards and features a spring actuator for reliable operation.

• Can be installed in both vertical and horizontal positions
• Constructed with bronze body and brass/PTFE trim
• Low lead content for safety compliance

Product Highlights

This valve is effective for preventing backflow in piping systems, ensuring the flow of fluids in one direction.

Product Information

Standard Information

• Manufacturer: JOMAR
• Nominal Size: 1 inch

Technical Specifications

• Actuator Type: Spring
• Body Material: Bronze
• Trim Material: Brass/PTFE
• Inlet to Outlet Length: 3.4 inches
• Top to Inlet Center: 2.28 inches
• Pressure Class: 150 lb
• Low Lead Compliance: Yes
• Series: T-511G
