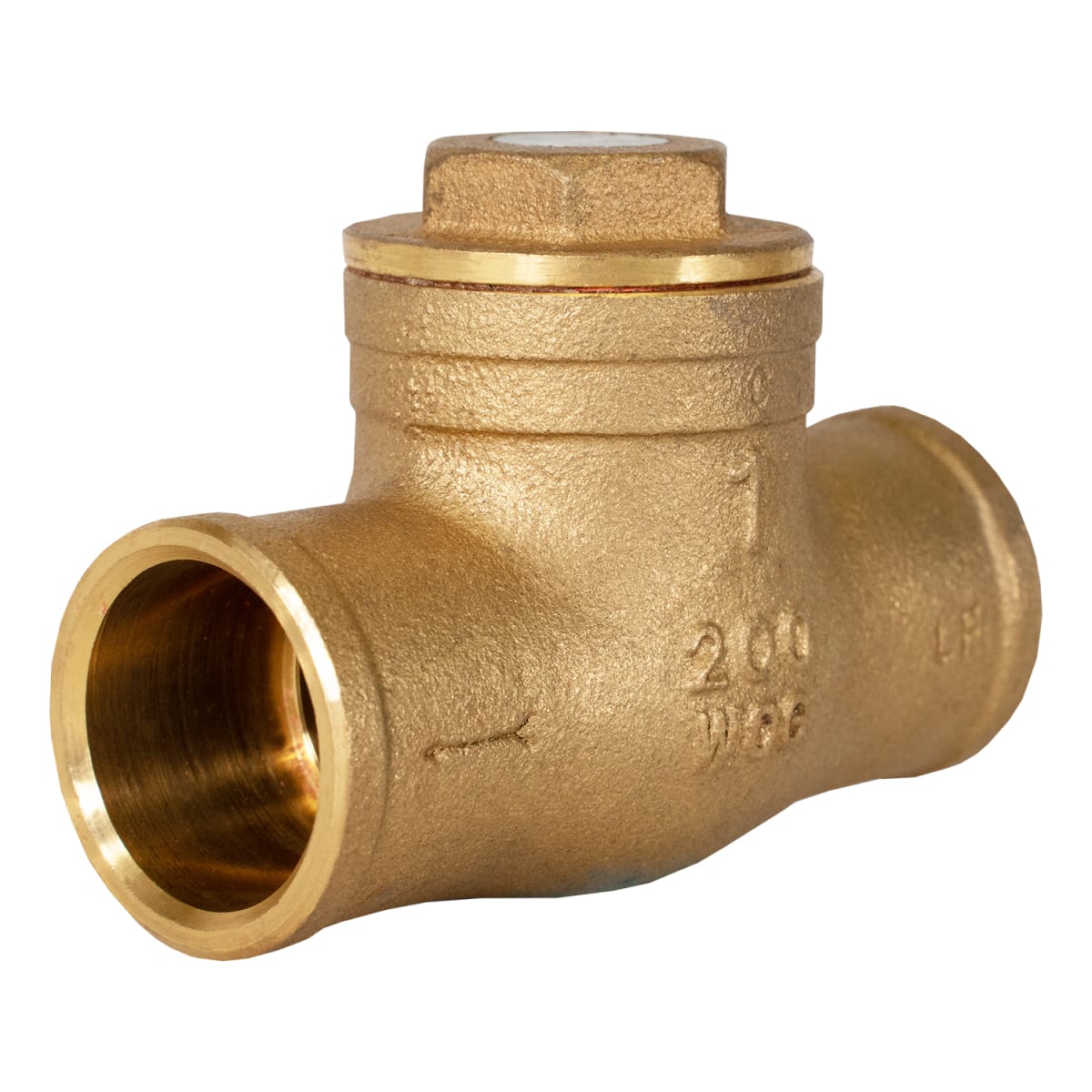

JOMAR 105-210G Horizontal Swing Check Valve, Solder Connection, Class 125, 200 WOG

Product Description

The JOMAR 105-210G is a horizontal swing check valve designed for solder connections. This valve is suitable for both residential and commercial applications. It is a part of the S-501G series and supports a pressure class of 125 pounds. The valve features low lead compliance, ensuring safety in water systems. With an inlet to outlet length of seven point five two inches and a top to inlet center measurement of four point zero two inches, this valve is appropriate for various plumbing setups.

• Spring actuator for reliable operation
• Cast brass body for durability
• Wetted surface contains less than zero point twenty-five percent lead content

Product Highlights

This valve meets ASME/ANSI B16.18 standards and is IAPMO certified, ensuring high-quality performance in your plumbing systems.

Product Information

Standard Information

• Manufacturer: JOMAR
• UPC: 662527305541

Technical Specifications

• Actuator Type: Spring
• Body Material: Cast Brass
• End Style: Solder Joint
• Inlet to Outlet Length: 7.52 inches
• Low Lead Compliance: Yes
• Nominal Size: 3 inches
• Pressure Class: 125 lb
• Series: S-501G
• Top to Inlet Center: 4.02 inches
• Trim Material: Forged Brass
• Type: Horizontal
