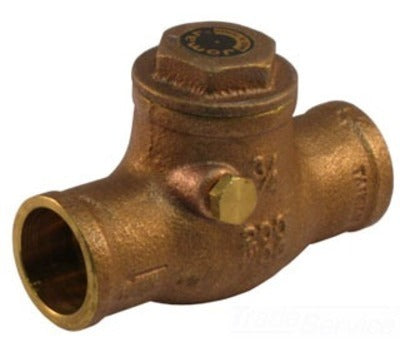

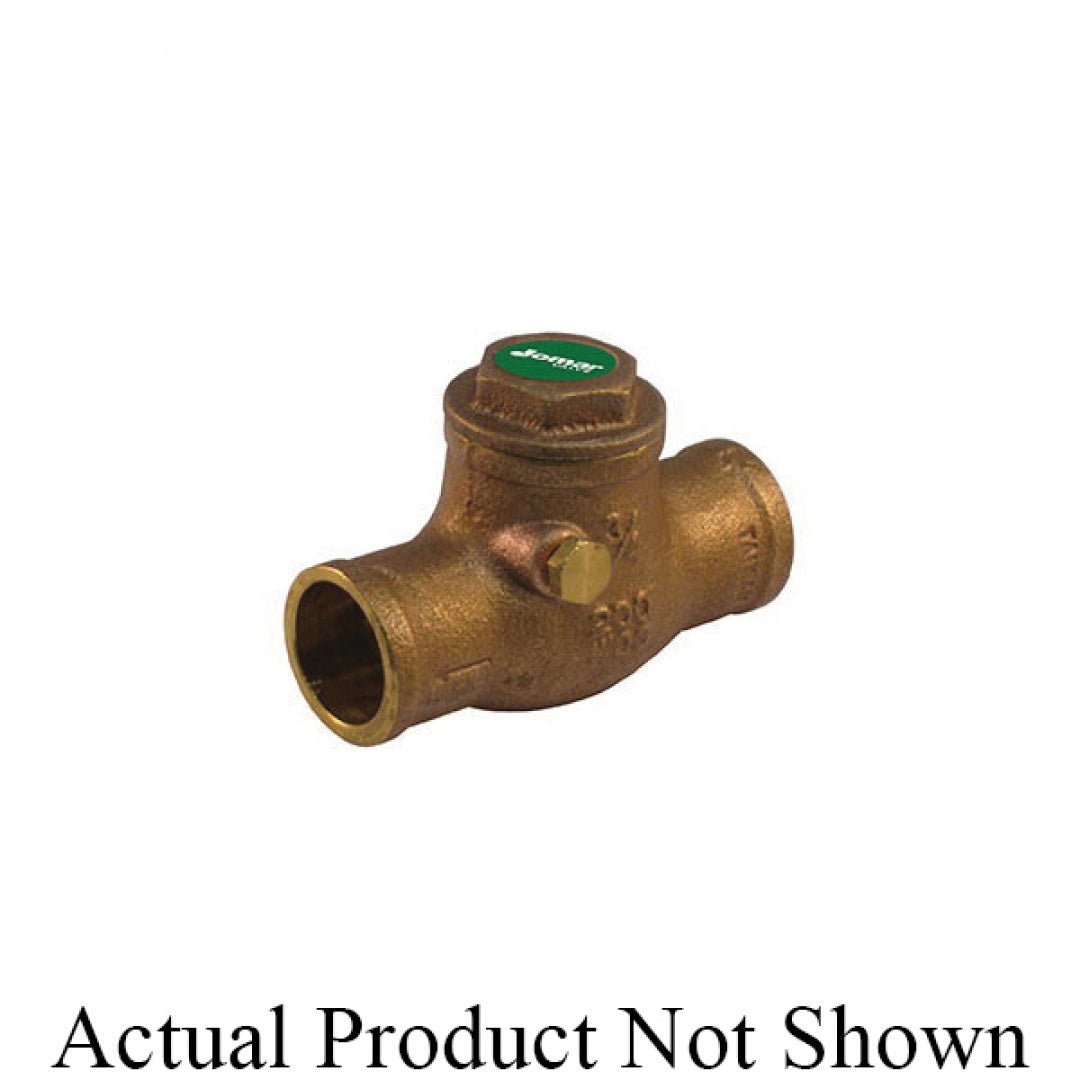

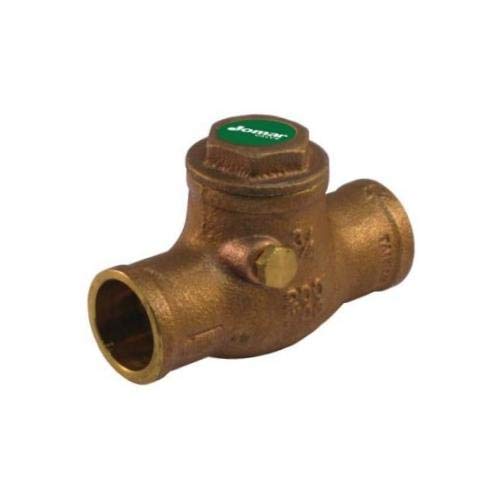

Jomar 105-206G Horizontal Swing Check Valve 1-1/4 Class 125 200 WOG

Product Description

Jomar 105-206G Horizontal Swing Check Valve is designed for reliable flow management. This valve has a nominal size of one and one-quarter inches and comes with a solder joint end style for easy installation. It adheres to low lead compliance with a lead content of less than twenty-five hundredths percent, making it safe for use in both residential and commercial settings.

• Pack of six valves included
• Class 125 pressure rating
• Wetted surfaces contain less than 0.25% lead content

Product Highlights

This Horizontal Swing Check Valve is ideal for preventing backflow in plumbing systems.

Product Information

Standard Information

• Manufacturer: JOMAR
• Model: 105-206G

Technical Specifications

• Nominal Size: 1-1/4 in
• Pressure Class: 125 lb
• Inlet to Outlet Length: 4.37 in
• Top to Inlet Center: 2.01 in
• Body Material: Cast Brass
• Trim Material: Forged Brass
• End Style: Solder Joint
• Actuator Type: Spring
