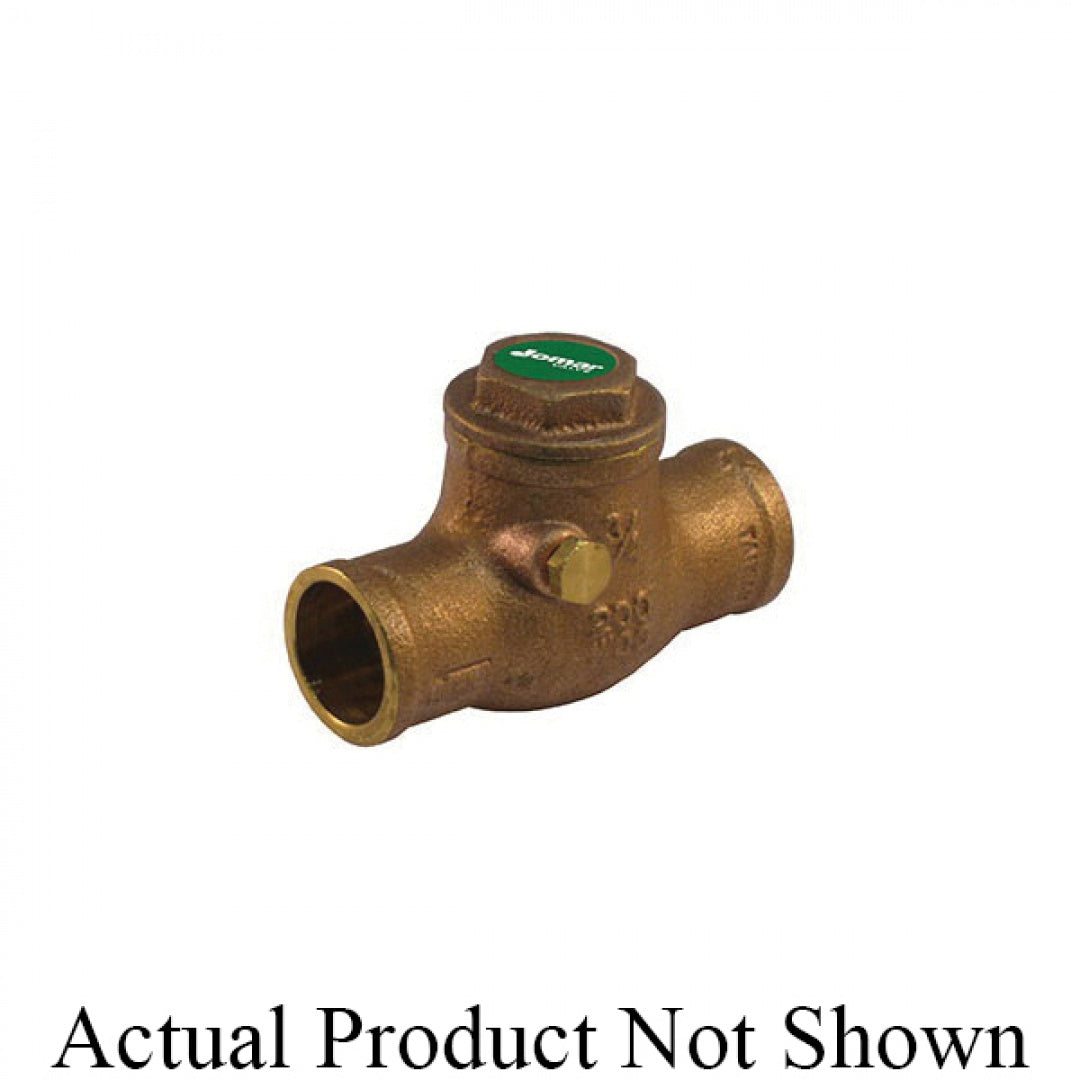

JOMAR 105-203G Horizontal Swing Check Valve, Solder Connection, Class 125, 200 WOG

Product Description

The JOMAR 105-203G is a horizontal swing check valve designed for solder connections. This valve is rated for Class 125 and can handle working pressures of up to 200 WOG. It is made from cast brass and features a low lead compliance design.

• Half inch nominal size suitable for copper solder connections
• Spring actuator for reliable performance
• Lowers lead content to less than 0.25 percent

Product Highlights

This valve is ideal for both commercial and residential applications. It meets the ASME/ANSI B16.18 standards and is IAPMO certified. The valve's construction includes a cast brass body and forged brass trim for durability.

Product Information

Standard Information

• Manufacturer: JOMAR
• UPC: 662527294692

Technical Specifications

• Nominal Size: 1/2 inch
• Pressure Class: 125 lb
• End Style: Solder Joint
• Inlet to Outlet Length: 2.52 inches
• Top to Inlet Center: 1.54 inches
• Body Material: Cast Brass
• Trim Material: Forged Brass
• Actuator Type: Spring
