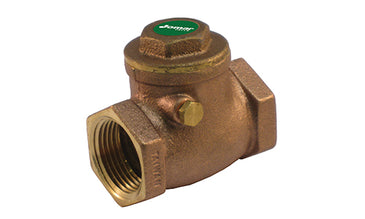

JOMAR 105-111G Horizontal Swing Check Valve, Threaded Connection, Class 125, 200 WOG

Product Description

The JOMAR 105-111G is a horizontal swing check valve designed for use in piping systems. This valve features a threaded connection and is rated for Class 125 and 200 WOG, suitable for both residential and commercial applications. It ensures backflow prevention, maintaining the integrity of your plumbing system.

• Spring actuator design for reliable operation.
• Constructed from cast brass, low lead compliance.
• Fits nominal pipe size of four inches.

Product Highlights

This valve is essential for maintaining water flow direction, preventing any unwanted backflow.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 105-111G

Technical Specifications

• Actuator Type: Spring
• Body Material: Cast Brass
• End Style: NPT
• Inlet to Outlet Length: 7.49 inches
• Low Lead Compliance: Yes
• Nominal Size: 4 inches
• Pressure Class: 125 lb
• Series: T-501G
• Top to Inlet Center: 4.53 inches
• Trim Material: Forged Brass
• Type: Horizontal
