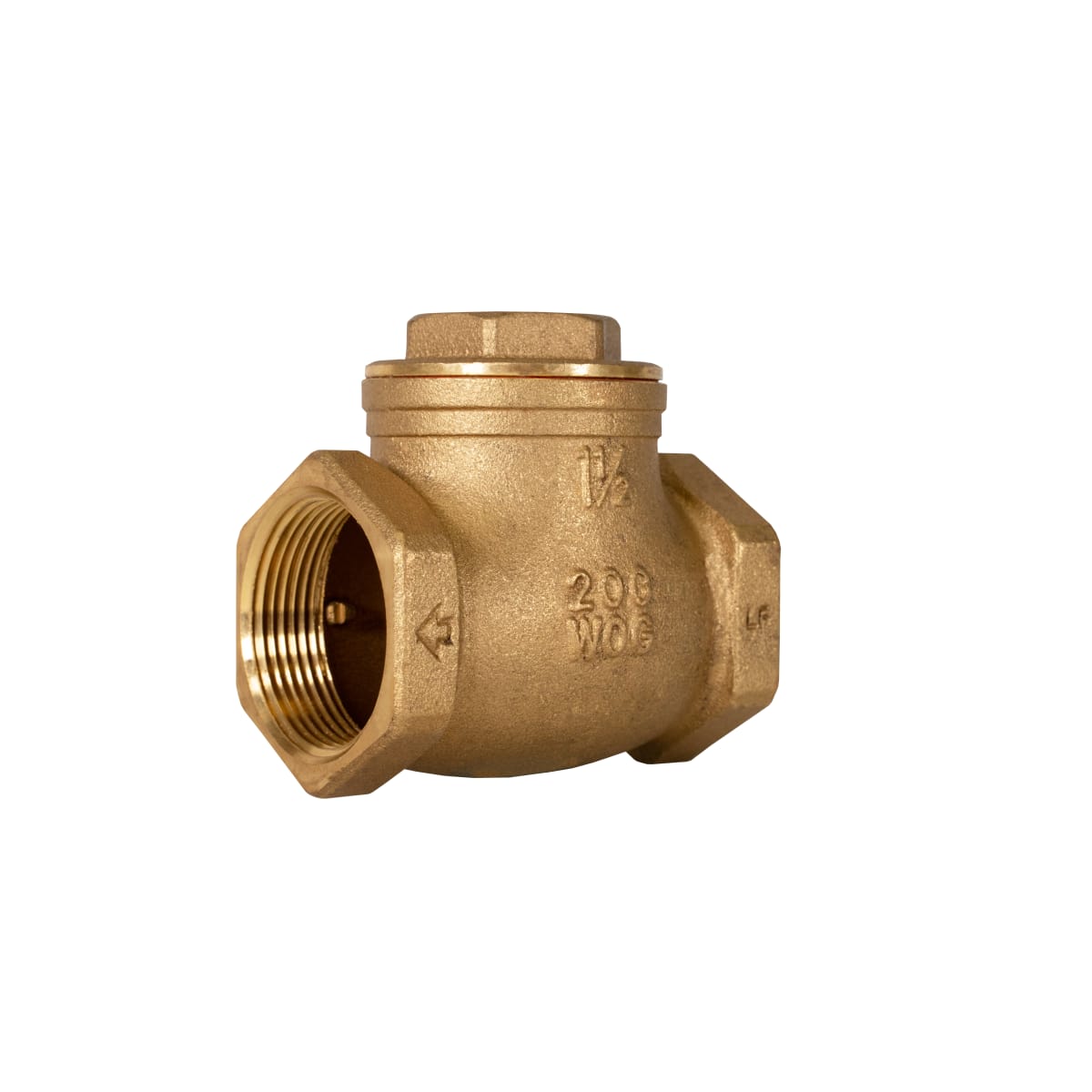

Jomar 105-110G Horizontal Swing Check Valve, Threaded Connection, Class 125, 200 WOG

Product Description

The Jomar 105-110G is a horizontal swing check valve designed for threaded connections. This valve operates under a Class 125 pressure rating and supports a maximum of 200 WOG. It features a durable cast brass body and a forged brass trim to ensure reliability in both commercial and residential applications.

• Low lead compliance with less than 0.25% lead content on wetted surfaces
• Spring actuator for efficient operation
• ANSI B1.20.1 certified and IAPMO approved

Product Highlights

This valve is suitable for various plumbing systems, providing both quality and safety standards for water flow control.

Product Information

Standard Information

• Manufacturer: JOMAR
• Series: T-501G

Technical Specifications

• Actuator Type: Spring
• Body Material: Cast Brass
• End Style: NPT
• Inlet to Outlet Length: 6.3 inches
• Low Lead Compliance: Yes
• Nominal Size: 3 inches
• Pressure Class: 125 lb
• Top to Inlet Center: 3.86 inches
• Trim Material: Forged Brass
• Type: Horizontal
