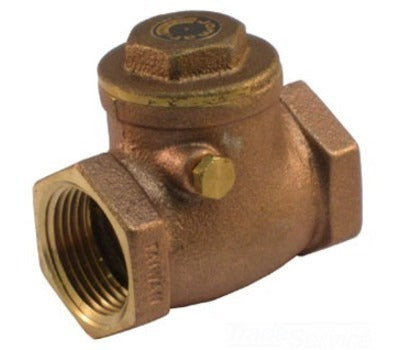

Jomar 105-108G Horizontal Swing Check Valve, Threaded Connection, Class 125, 200 WOG

Product Description

Jomar 105-108G is a horizontal swing check valve suitable for threaded connections and rated for Class 125 and 200 WOG. This valve is designed to facilitate fluid flow and prevent backflow in residential and commercial piping systems. It features low lead compliance for safety in drinking water applications.

• Nominal size of two inches.
• Spring actuator for reliable operation.
• Constructed with a cast brass body.

Product Highlights

The valve is ideal for various plumbing applications, ensuring compliant and efficient operations.

Product Information

Standard Information

• Manufacturer: JOMAR
• Model Number: 105-108G

Technical Specifications

• Actuator Type: Spring
• Body Material: Cast Brass
• End Style: NPT
• Inlet to Outlet Length: 4.3 inches
• Low Lead Compliance: Yes
• Nominal Size: 2 inches
• Pressure Class: 125 lb
• Series: T-501G
• Top to Inlet Center: 2.68 inches
• Trim Material: Forged Brass
• Type: Horizontal
