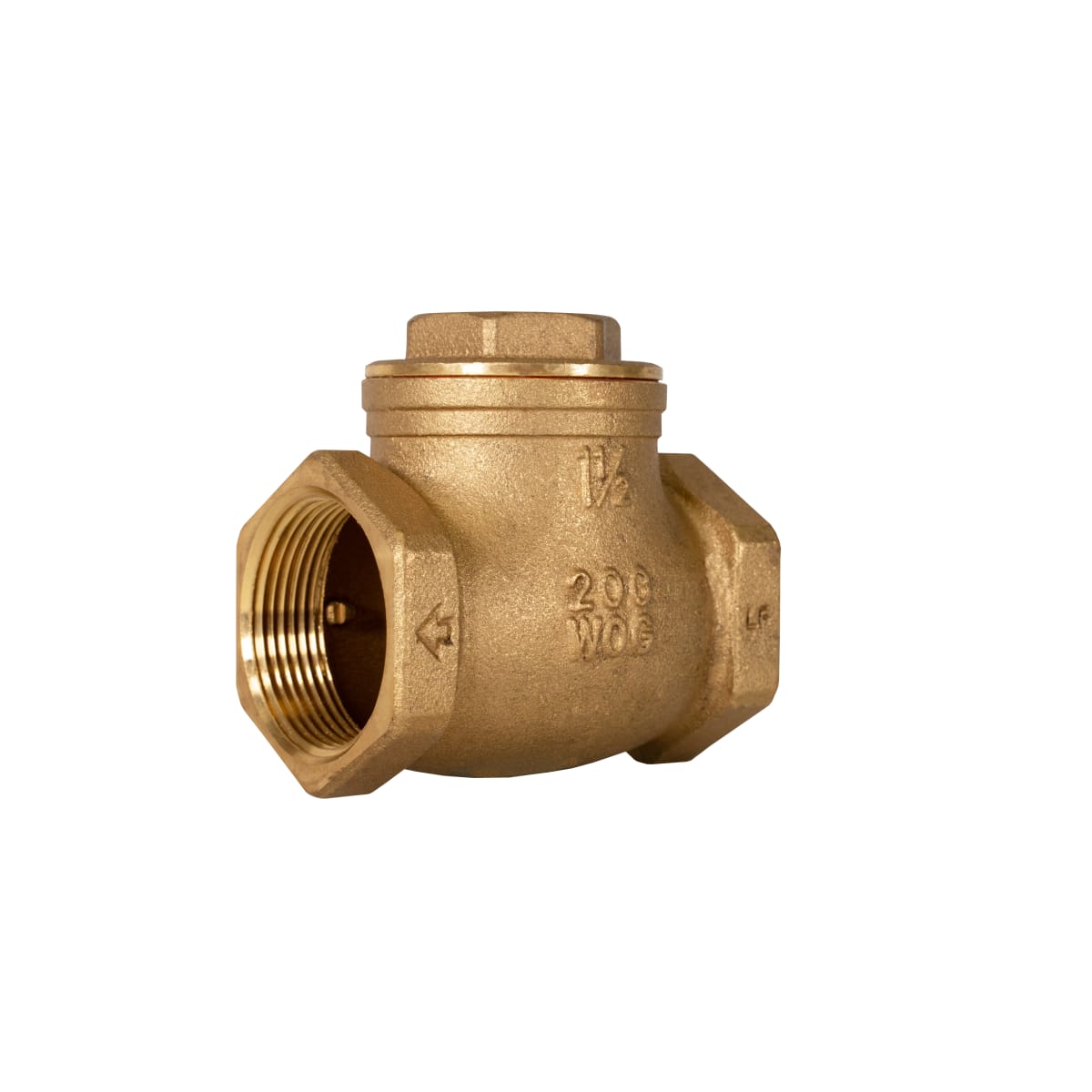

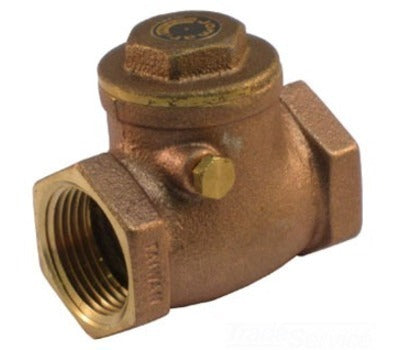

Jomar 105-107G Horizontal Swing Check Valve, Threaded Connection, Class 125, 200 WOG

Product Description

The Jomar 105-107G is a horizontal swing check valve designed for use in piping systems. It features a threaded connection and complies with Class 125 standards, handling a maximum of 200 WOG. This valve is suitable for both commercial and residential applications.

• Spring actuator for reliable performance
• Low lead compliance with less than 0.25% lead content
• Constructed from durable cast brass with forged brass trim

Product Highlights

This check valve prevents backflow in plumbing and piping systems, ensuring uninterrupted flow and system integrity.

Product Information

Standard Information

• Manufacturer: JOMAR
• Product Type: Swing Check Valve

Technical Specifications

• Actuator Type: Spring
• Body Material: Cast Brass
• Trim Material: Forged Brass
• Nominal Size: 1-1/2 inches
• End Style: NPT
• Inlet to Outlet Length: 3.51 inches
• Pressure Class: 125 lb
• Top to Inlet Center: 2-1/4 inches
• Low Lead Compliance: Yes
