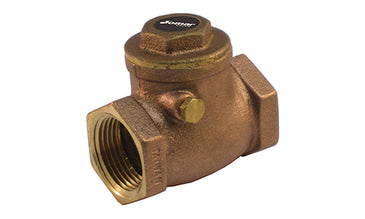

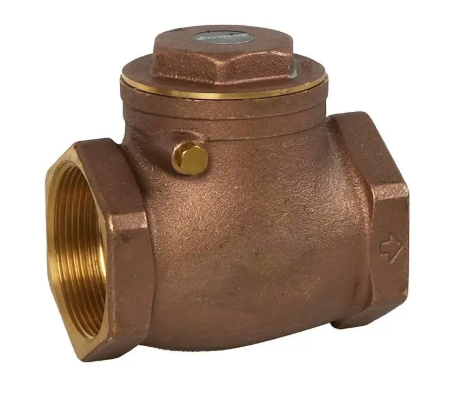

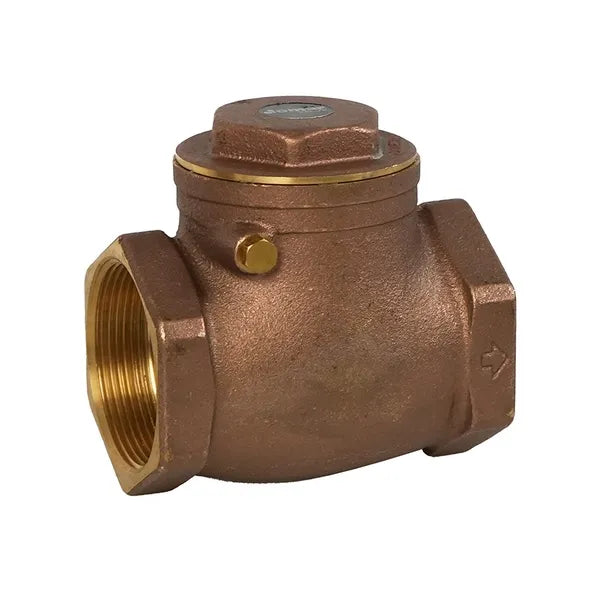

Jomar 105-107 T-501 Brass Thrd Horz Swing Check Valve 1-1/2 IN

Product Description

The JOMAR 105-107 T-501 is a Class 125 cast brass horizontal swing check valve with a 1-1/2 IN nominal size and FNPT connection. Designed for residential and commercial applications, this valve ensures unidirectional flow. It is rated for pressure up to 200 PSI (WOG).

• Horizontal Swing Check Valve
• Brass Construction
• Threaded Connection

Product Highlights

The Jomar T-501 check valve is suitable for various plumbing and fluid control systems, preventing backflow in both residential and commercial settings.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 105-107
• Country of Origin: USA

Technical Specifications

• Series/Model: Model T-501
• Nominal Size: 1-1/2 IN
• Connection Type: FNPT
• Pressure Rating: 200 PSI (WOG)
• Pressure Class: Class 125
• Body Material: Cast Brass
• Trim Material: Forged Brass Disc
• Width: 3.51 IN
• Lead Free: No
• Item Number: 105-107
• Brand: Jomar
• Family: T-501
• Material: Regular Brass
• Size: 1-1/2"
• Valve: Horizontal Swing Check Valve
• Approvals: ANSI B1.20.1
• Temperature range: -10°F to 180°F
• Item: Horizontal Swing Check Valve
• Pressure Rating (WOG): 200
• Temp Rating: -10°F to 180°F
• Style: Threaded
• Manufacturer: Jomar
• Vendor Item #: 105-107

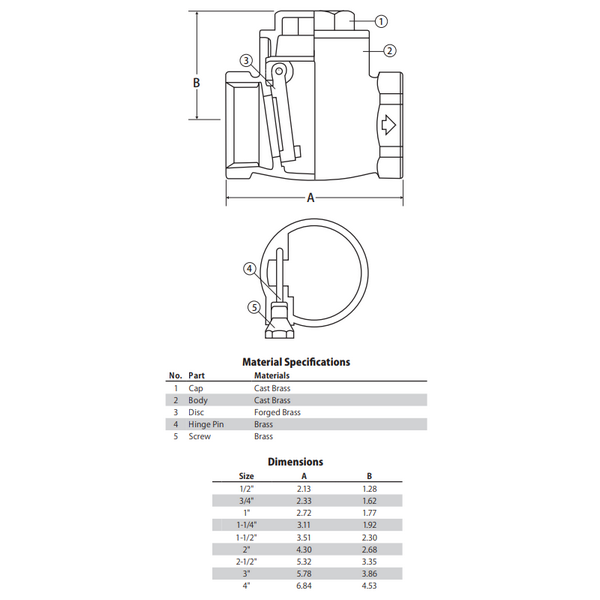

• Dimension A: 3.51 "
• Dimension B: 2.25 "
• Connection Size: 1 1/2 Inch
• Valve Type: Check Valve
• Swing Type: Horizontal Swing
• WOG: 200
• Class: 125
