Product Description

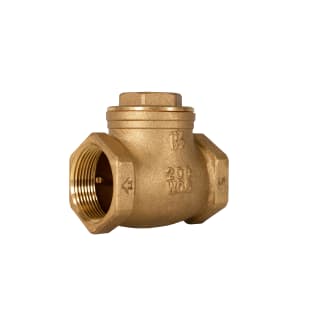

The JOMAR 105-106G is a horizontal swing check valve designed for applications requiring dependable flow control. This product features a threaded connection and a pressure class of 125 lb with a maximum working pressure of 200 WOG. The valve’s low lead compliance supports safe drinking water regulations, making it suitable for both commercial and residential uses.
- Made from cast brass for durability
- Wetted surfaces contain less than 0.25% lead content
- Spring actuator for effective operation
Product Highlights
This valve is equipped with a spring actuator for smooth operation, ensuring efficient flow control in piping systems.
Product Information
Standard Information
-
Manufacturer: JOMAR
-
UPC: 662527294630
Technical Specifications
-
Actuator Type: Spring
-
Body Material: Cast Brass
-
End Style: NPT
-
Inlet to Outlet Length: 3.11 inches
-
Low Lead Compliance: Yes
-
Nominal Size: 1-1/4 inches
-
Pressure Class: 125 lb
-
Series: T-501G
-
Top to Inlet Center: 2.01 inches
-
Trim Material: Forged Brass
-
Type: Horizontal
