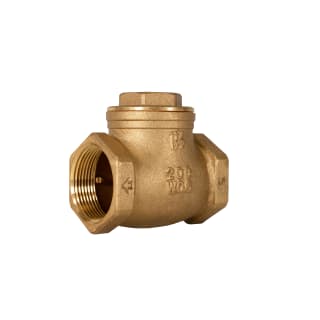

JOMAR 105-105G Horizontal Swing Check Valve, Threaded Connection, Class 125, 200 WOG

Product Description

The Jomar 105-105G is a horizontal swing check valve designed for threaded connections. It is compliant with Class 125 and suitable for 200 WOG applications. This valve is ideal for both commercial and residential use.

• Lead-free design with wetted surfaces containing less than 0.25% lead
• Spring actuator for reliable operation
• Durable cast brass body with forged brass trim

Product Highlights

The Jomar horizontal swing check valve offers a dependable solution for preventing backflow in piping systems. Its robust construction ensures long-term performance and compliance with relevant standards.

Product Information

Standard Information

• Manufacturer: JOMAR
• Type: Horizontal Swing Check Valve

Technical Specifications

• MPN: 105-105G
• Nominal Size: 1 inch
• Pressure Class: 125 lb
• Inlet to Outlet Length: 2.72 inches
• Top to Inlet Center: 1.77 inches
• End Style: NPT
• Low Lead Compliance: Yes
• Series: T-501G
• Actuator Type: Spring
• Body Material: Cast Brass
• Trim Material: Forged Brass
