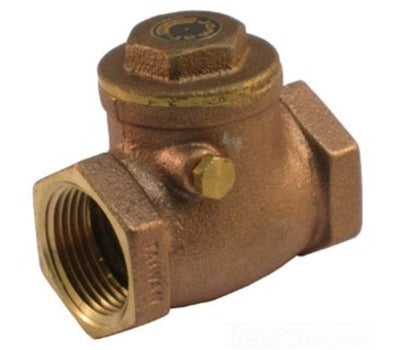

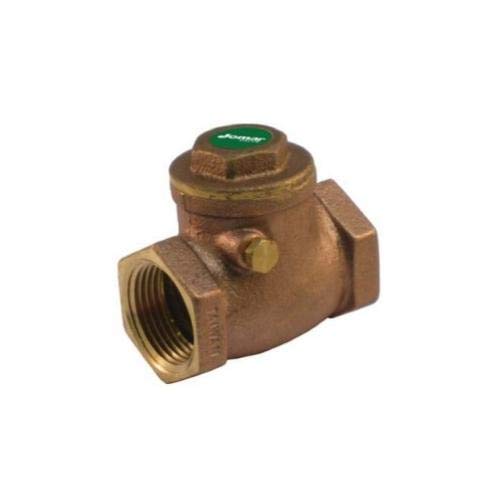

Jomar 105-104G T-501G Lead Free Brass Horizontal Check Valve 3/4

Product Description

The Jomar 105-104G T-501G is a lead-free brass horizontal check valve. This valve is suitable for various plumbing applications due to its robust design. It has a quarter inch nominal size and features an NPT threaded connection. The valve is ideal for both residential and commercial use.

• Lead-free construction
• Class 125 pressure rating
• Suitable for water service applications up to 200 WOG

Product Highlights

The Jomar 105-104G is compliant with low lead regulations, featuring wetted surfaces with less than point twenty-five percent lead content.

Product Information

Standard Information

• Manufacturer: Jomar
• Model: T-501G

Technical Specifications

• Actuator Type: Spring
• Body Material: Cast Brass
• Trim Material: Forged Brass
• End Style: NPT
• Nominal Size: 3/4 inch
• Pressure Class: 125 lb
• Inlet to Outlet Length: 2.33 inches
• Top to Inlet Center: 1.62 inches
• Low Lead Compliance: Yes
