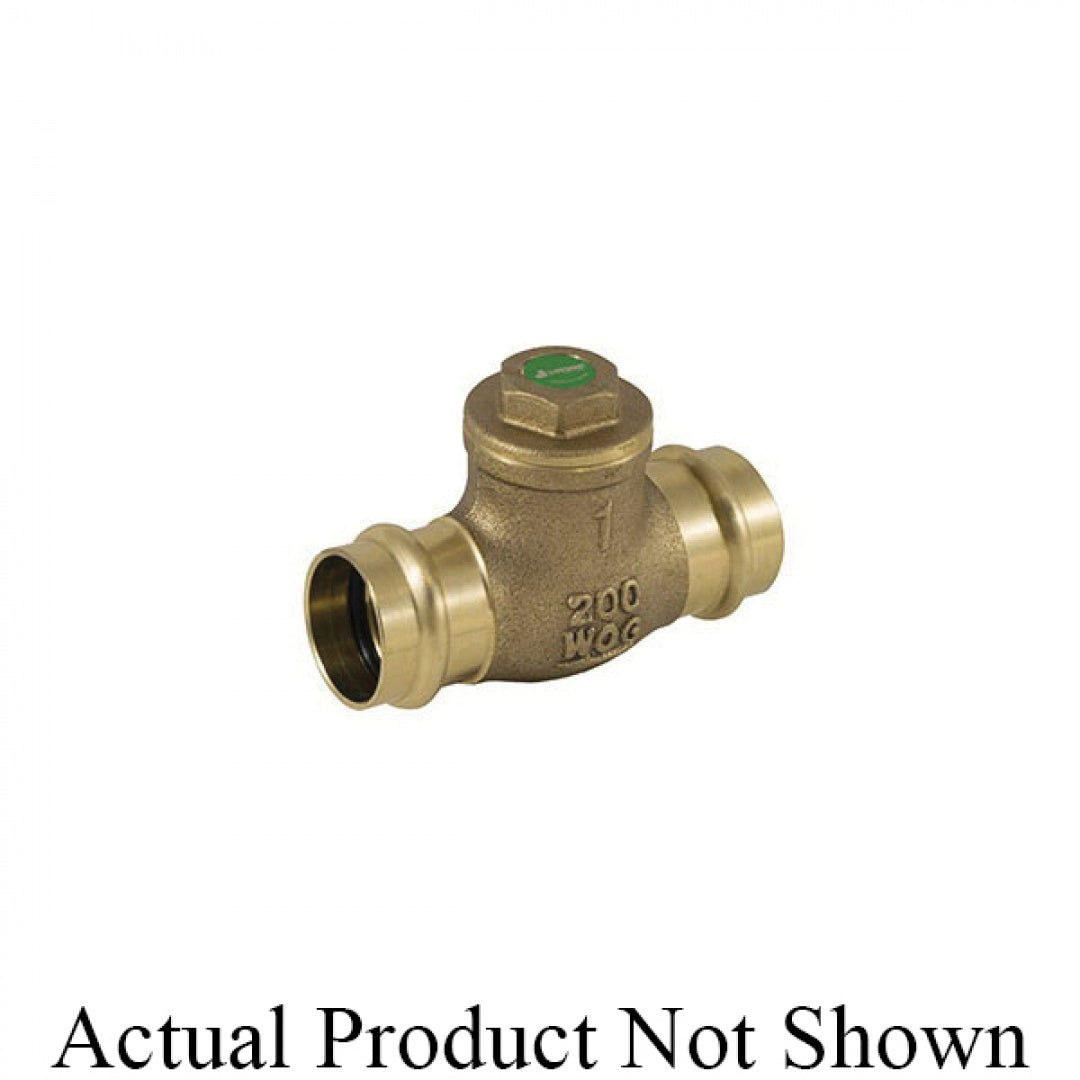

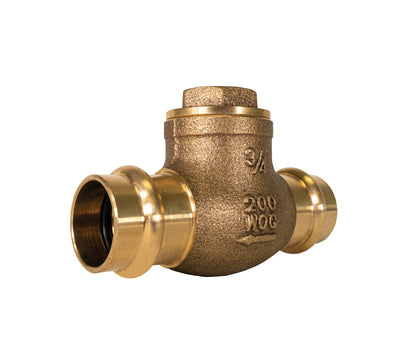

Jomar 105-007G Horizontal Swing Check Valve, Press Connection, Class 125, 200 WOG

Product Description

The Jomar 105-007G Horizontal Swing Check Valve ensures reliable performance for plumbing systems. This valve is designed with a press connection and offers a Class 125 pressure rating and 200 WOG capability.

• 1-piece horizontal swing check valve
• Resistant brass alloy with lead-free compliance
• Heavy pattern cast brass construction

Product Highlights

This Jomar check valve features a 1-1/2 inch nominal size and includes an EPDM O-ring for effective sealing. It has a metal-to-metal disc seal and is constructed from dezincification-resistant brass, offering robustness and durability.

Product Information

Standard Information

• Manufacturer: Jomar
• MPN: 105-007G
• UPC: 662527304513

Technical Specifications

• Nominal Size: 1-1/2 in
• Dimensions: 3.4 in H
• Inlet to Outlet Length: 5.32 in
• Pressure Class: 125 lb
• Connection: Press
• Body Material: Cast Brass
• Trim Material: Brass
• Seal Material: EPDM
• Dezincification Resistant: Yes
• Spring Actuator
