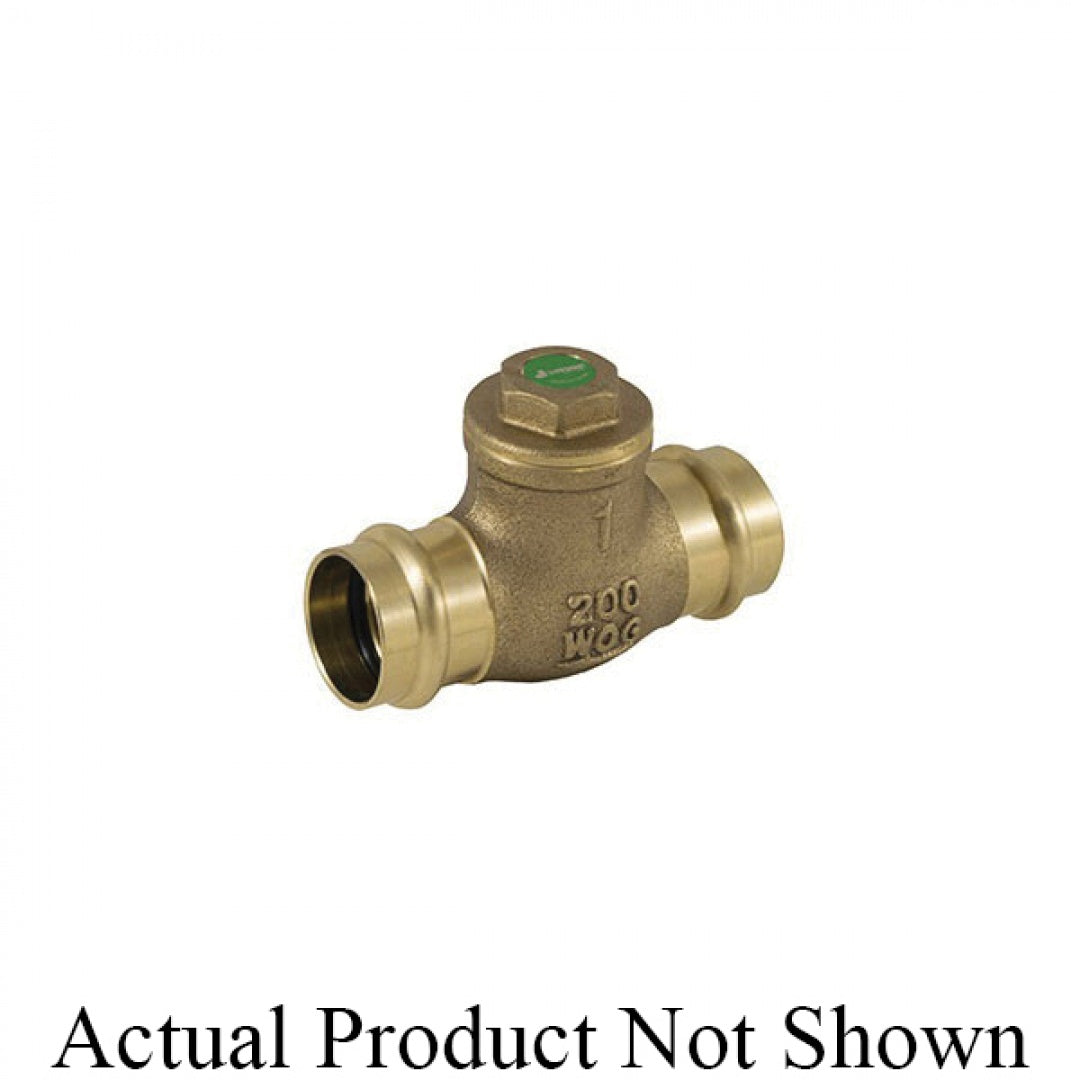

Jomar 105-006G Horizontal Swing Check Valve Press Connection Class 125 200 WOG

Product Description

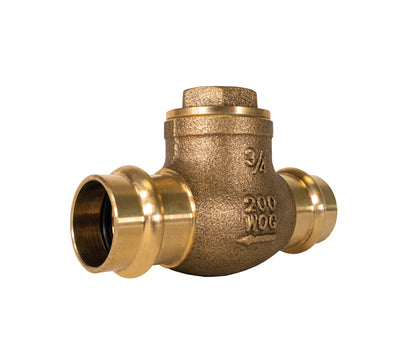

The Jomar 105-006G Horizontal Swing Check Valve is a robust piece designed for press connection applications. This valve is built for reliability with a cast brass body and a heavy pattern construction. It operates at a pressure class of 125 lb and is compliant with low lead regulations, ensuring safety and durability.

• 1-piece horizontal design
• Dezincification-resistant brass
• EPDM O-ring seal

Product Highlights

This Jomar valve features a metal-to-metal disc seal and a spring actuator, providing efficient flow control. It is built to handle 200 WOG and has a wetted surface with less than 0.25% lead content, ensuring compliance with safety standards.

Product Information

Standard Information

• Brand: Jomar
• MPN: 105-006G
• Product Name: Horizontal Swing Check Valve, Press Connection, Class 125, 200 WOG
• Manufacturer: Jomar
• UPC: 662527304506

Technical Specifications

• Actuator Type: Spring
• Body Material: Cast Brass
• Dimensions: 3.12 inches H
• End Style: Press
• Inlet to Outlet Length: 4.13 inches
• Low Lead Compliance: Yes
• Nominal Size: 1-1/4 inches
• Pressure Class: 125 lb
• Series: P-501G
• Softgoods Material: EPDM
• Trim Material: Brass
• Type: 1-Piece Horizontal
• Specifications Met: IAPMO PS 117
