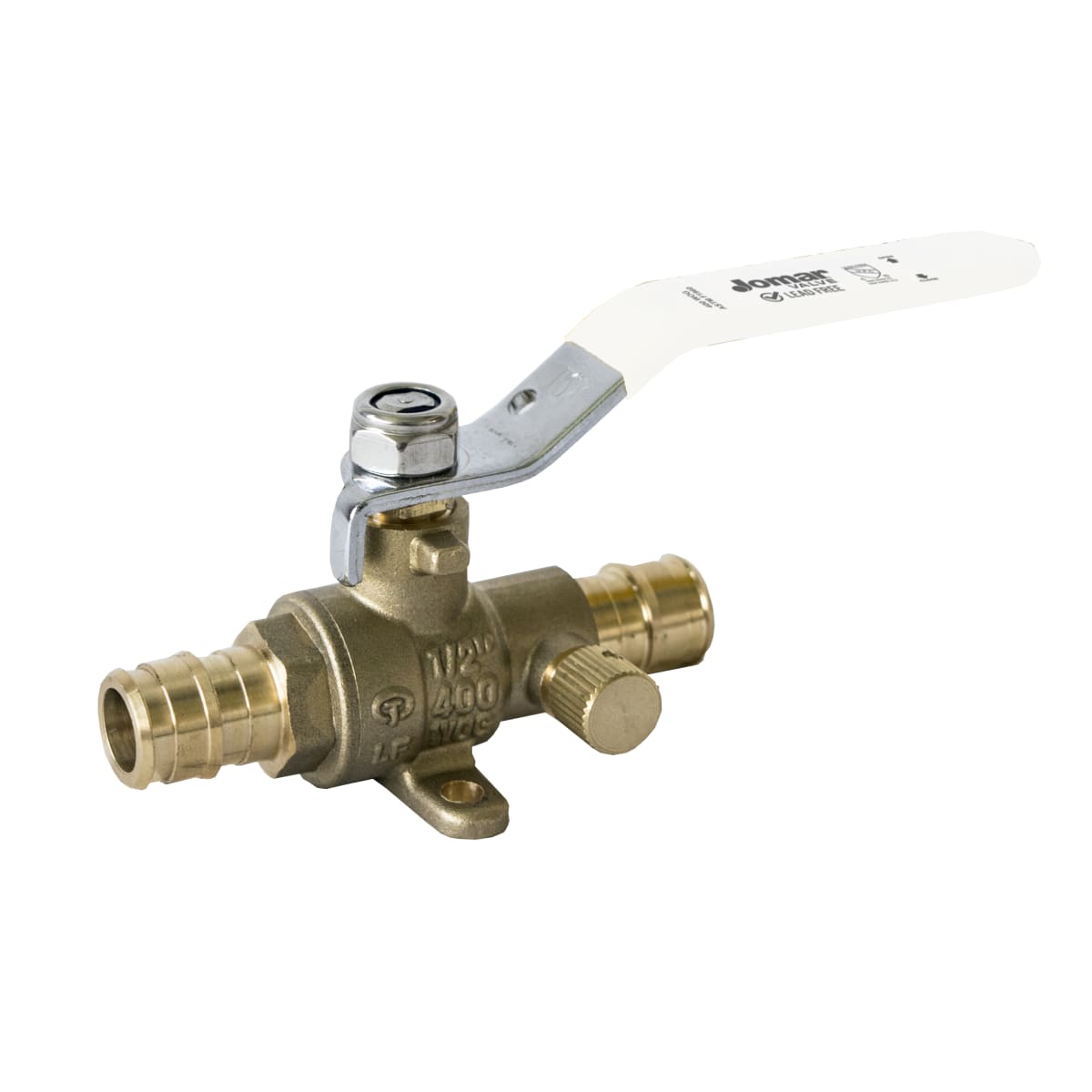

Jomar 104-544PG 2 Piece Expansion Pex Connection 400 WOG with Drain

Product Description

The Jomar 104-544PG is a 2 Piece Expansion Pex Connection designed for high pressure applications. This valve has a pressure rating of four hundred psi WOG and is suitable for temperatures up to two hundred degrees Fahrenheit. It connects easily with PEX piping and features a drain option for efficient drainage.

• 400 psi WOG pressure rating
• PEX expansion end style for seamless installation
• 304 stainless steel ball and brass body for durability

Product Highlights

This valve is ideal for plumbing applications requiring reliable connections and efficient drainage. The robust design ensures long-lasting performance.

Product Information

Standard Information

• Brand: Jomar
• MPN: 104-544PG

Technical Specifications

• Nominal Size: 3/4 in
• Inlet to Outlet Length: 3.48 in
• Top to Inlet Center: 1.81 in
• Body Material: Brass
• Ball Material: 304 Stainless Steel
• Softgoods Material: PTFE/Buna-N
• Temperature Rating: 200 deg F
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• End Style: PEX Expansion
• Port Type: Standard
