Jomar 104-529PG 2-Piece Expansion PEX Connection Ball Valve 400 WOG

Product Description

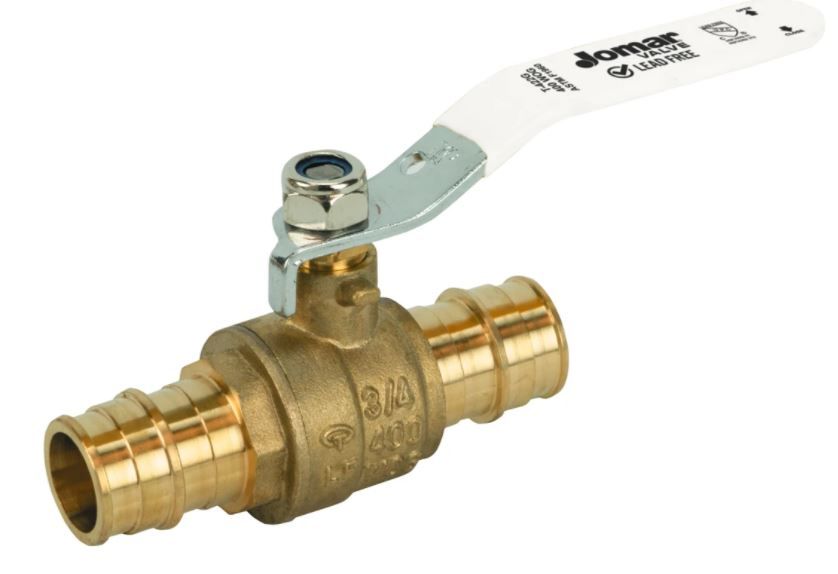

The Jomar 104-529PG Ball Valve is a 2-piece valve designed for PEX expansion connections. It handles pressures up to 400 psi WOG and temperatures up to 200 degrees Fahrenheit. The valve features a standard port, stainless steel ball, and brass body.

• 2-piece design for easy installation
• Low lead content for safety
• Rated for high pressure and temperature

Product Highlights

Ideal for various plumbing applications requiring high pressure and temperature resistance.

Product Information

Standard Information

• Brand: Jomar
• MPN: 104-529PG
• Category: Piping & Fittings

Technical Specifications

• Material: Brass
• Nominal Size: 2-1/2 inches
• Pressure Rating: 400 psi WOG
• Temperature Rating: 200 degrees Fahrenheit
• Inlet to Outlet Length: 8.8 inches
• Top to Inlet Center: 3.04 inches
• End Style: PEX Expansion
• Port Type: Standard Port
• Ball Material: Stainless Steel
• Softgoods Material: PTFE/Buna-N
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Compliance: ASTM F1960, IAPMO Listed, NSF 61-8, NSF 372, IAPMO/ANSI Z1157-2014, ANSI/NSF 14-2014, RoHS Compliant
