Jomar 104-527PG 2 Piece Expansion PEX Connection 400 WOG Valve

Product Description

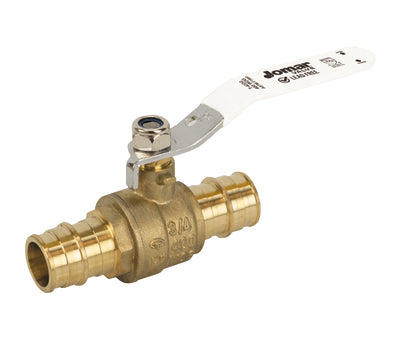

The Jomar 104-527PG is a versatile 2-piece ball valve designed for PEX expansion connections. Its robust brass body and stainless steel ball ensure reliability. Rated for 400 psi WOG pressure and temperatures up to 200 degrees Fahrenheit, this valve is suitable for demanding applications.

• Ideal for PEX expansion connections
• Reliable operation under high pressure
• Rated for temperatures up to 200 degrees Fahrenheit

Product Highlights

This ball valve by Jomar features a gland follower and single O-ring stem design. It has a blowout-proof stem and has undergone 100% leak testing. Suitable for applications where low lead content is required, this valve meets numerous standards and approvals.

Product Information

Standard Information

• Brand: Jomar
• MPN: 104-527PG

Technical Specifications

• Nominal Size: 1-1/2 inches
• End Style: PEX Expansion
• Pressure Rating: 400 psi WOG
• Temperature Rating: 200 degrees Fahrenheit
• Body Material: Brass
• Ball Material: Stainless Steel
• Stem Material: 304 Stainless Steel
• Seat Material: PTFE
• Softgoods Material: PTFE/Buna-N
• Inlet to Outlet Length: 5.52 inches
• Top to Inlet Center: 2.45 inches
• Standards/Approval: ASTM F1960, cUPC Listed, IAPMO/ANSI Z1157-2014, NSF 61-8/372, NSF/ANSI 14-2014
• Weight: 46 lb
