Product Description

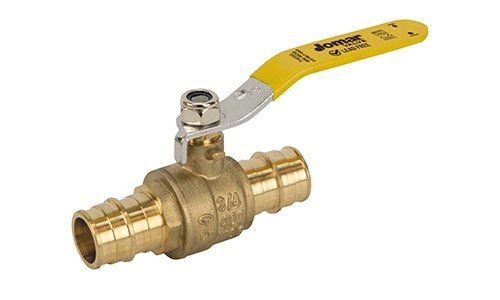

The Jomar 104-526PG 2 Piece Expansion Pex Connection with a 400 WOG rating is designed for seamless integration in plumbing systems. It features a robust brass body and stainless steel components, ensuring durability and reliability.
- Gland follower and single O-Ring stem design
- Blow-out proof stem
- 100% leak tested
Product Highlights
This ball valve is ideal for professional plumbing tasks, offering reliable performance under high pressure and temperature conditions. It is made from high-quality materials and adheres to several industry standards for safety and reliability.
Product Information
Standard Information
-
Brand: Jomar
-
MPN: 104-526PG
-
Category: Piping & Fittings
-
UPN: 662527304421
-
Material: Brass
Technical Specifications
-
Ball Material: Stainless Steel
-
Body Material: Brass
-
End Style: PEX Expansion
-
Inlet to Outlet Length: 4.65 inches
-
Nominal Size: 1-1/4 inches
-
Port Type: Standard
-
Pressure Rating: 400 psi WOG
-
Softgoods Material: PTFE/Buna-N
-
Temperature Rating: 200 degrees F
-
Top to Inlet Center: 2-1/2 inches
-
Trim Material: 304 Stainless Steel Stem and PTFE Seat
-
Type: 2 Piece
-
Standards Met: ASTM F1960, IAPMO Listed, NSF 61-8, NSF 372, IAPMO/ANSI Z1157-2014, ANSI/NSF 14-2014, RoHS Compliant
