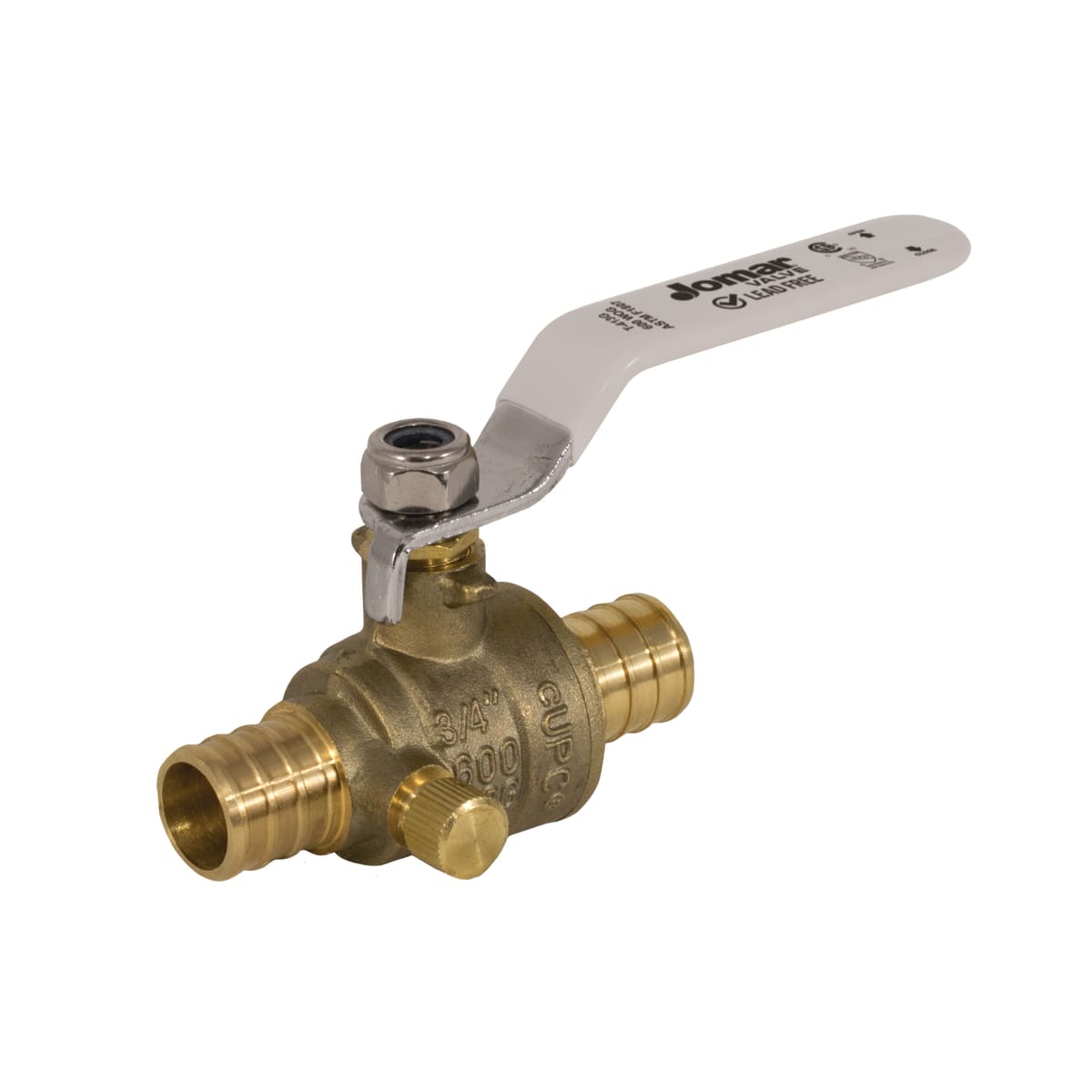

JOMAR 103-543PG 2 Piece Crimp Pex Connection 400 WOG with Drain

Product Description

JOMAR 103-543PG is a two-piece crimp PEX connection valve suitable for plumbing applications. This model is designed for a working pressure of four hundred WOG. The valve features a drain for easy maintenance and a reliable seal.

• Made from durable brass with a stainless steel ball.
• Compatible with PEX piping systems.
• Temperature rating up to one hundred eighty degrees Fahrenheit.

Product Highlights

This JOMAR valve is ideal for plumbing professionals who need reliable connections in residential or commercial systems.

Product Information

Standard Information

• Manufacturer: JOMAR
• Part Number: 103-543PG

Technical Specifications

• Ball Material: 304 Stainless Steel
• Body Material: Brass
• End Style: PEX (Crimp)
• Inlet to Outlet Length: 2.66 inches
• Nominal Size: 1/2 inches
• Port Type: Standard
• Pressure Rating: 600 psi WOG
• Softgoods Material: PTFE/Buna-N
• Temperature Rating: 180 degrees Fahrenheit
• Top to Inlet Center: 1.65 inches
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Connection Type: F1807 x F1807
