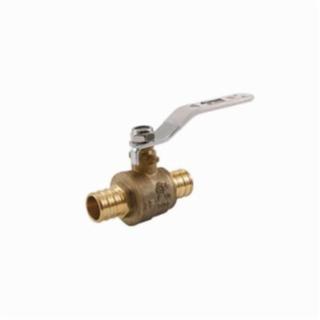

JOMAR 103-526PG 2 Piece Crimp Pex Connection 400 WOG

Product Description

The JOMAR 103-526PG is a two-piece crimp PEX connection designed for various plumbing applications. This product supports a pressure rating of four hundred working pressure gauge and a maximum temperature of one hundred eighty degrees Fahrenheit. The valve features a lever operated actuator and a chrome plated brass ball.

• Material: Brass body with PTFE seat trim
• Leak tested to ensure reliability
• Crimp connection suitable for high-pressure systems

Product Highlights

Ideal for residential and commercial plumbing projects where robust PEX connections are required.

Product Information

Standard Information

• Manufacturer: JOMAR
• Product Type: Two-Piece Crimp Valve

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: PEX (Crimp)
• Inlet to Outlet Length: 3.62 inches
• Nominal Size: 1-1/4 inches
• Port Type: Standard
• Pressure Rating: 400 psi WOG
• Softgoods Material: PTFE/EPDM
• Temperature Rating: 180 degrees F
• Top to Inlet Center: 2.16 inches
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
