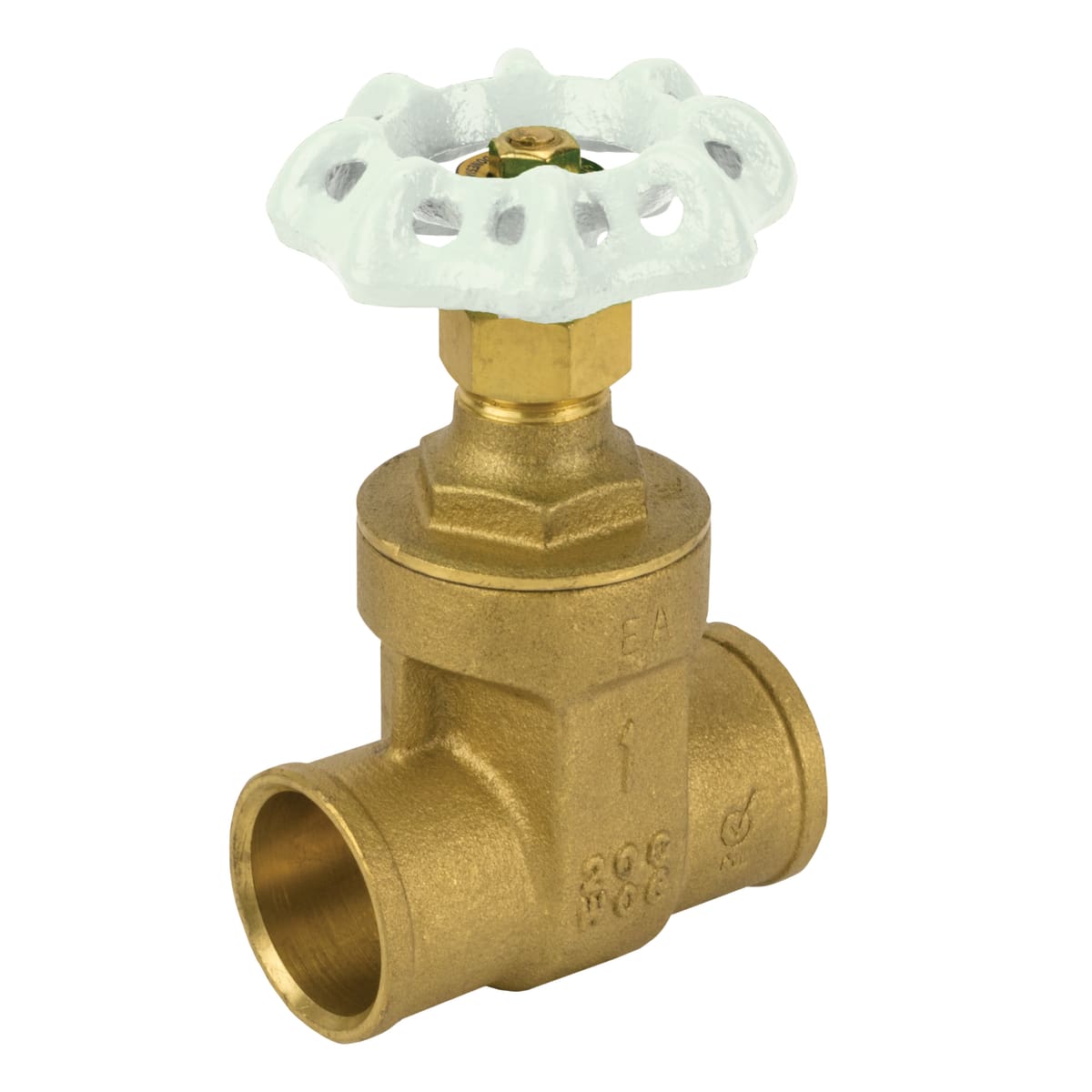

JOMAR 103-406G Gate Valve, Non-rising Stem, Solder Connection, 200 WOG

Product Description

The JOMAR 103-406G is a gate valve designed with a non-rising stem feature. It is suitable for use in various plumbing applications requiring solder connections. This valve operates under a maximum pressure of 200 WOG, making it ideal for efficient flow control.

• Non-rising stem design for compact installation
• 200 psi pressure rating for heavy-duty use
• Solder end connection for secure and leak-proof joints

Product Highlights

Designed for quality and durability, the JOMAR gate valve provides a reliable solution for controlling water flow in piping systems.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 103-406G

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Brass
• End Style: Solder
• Hand Wheel Diameter: 3.03 inches
• Inlet to Outlet Length: 2.88 inches
• Nominal Size: 1-1/4 inches
• Pressure Rating: 200 psi WOG
• Softgoods Material: Buna-N Gland Packing
• Top to Inlet Center: 4.57 inches
• Trim Material: Brass/Cast Brass
• Type: Non-Rising Stem
