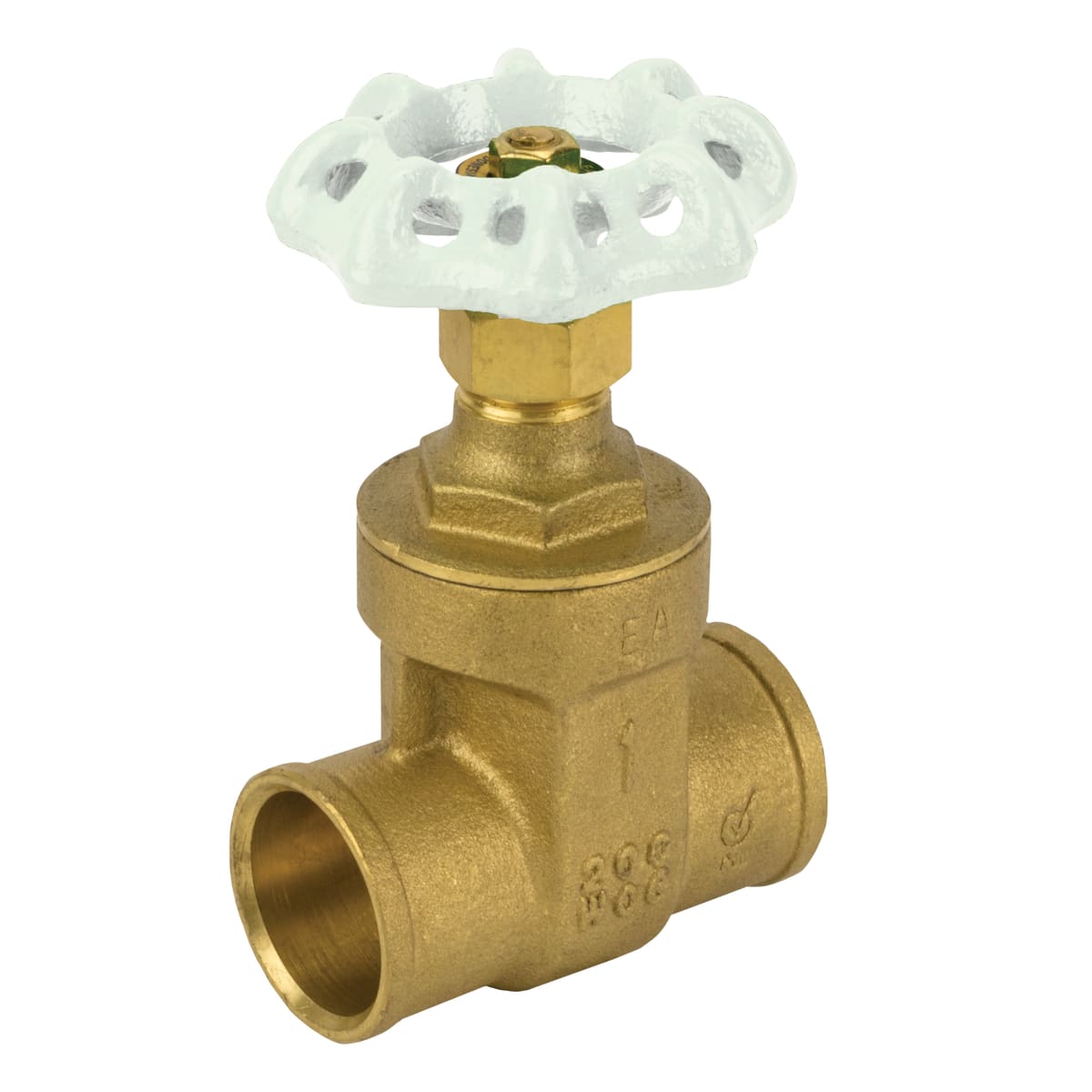

Jomar 103-404G Gate Valve, Non-rising Stem, Solder Connection, 200 WOG

Product Description

Jomar 103-404G is a gate valve designed for various pipe systems. It features a non-rising stem with a solder connection and is rated for 200 psi working pressure. The valve is suitable for water and other fluids in commercial and residential applications.

• Constructed from cast brass.
• Designed with a handwheel actuator for easy operation.
• Features lead-free compliant materials.

Product Highlights

This valve is essential for controlling water flow and is compatible with standard piping systems. Its solid wedge design ensures durability and reliability in performance.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 103-404G

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Brass
• End Style: Solder
• Hand Wheel Diameter: 2.13 inches
• Inlet to Outlet Length: 2.32 inches
• Nominal Size: 3/4 inch
• Pressure Rating: 200 psi WOG
• Softgoods Material: Buna-N Gland Packing
• Top to Inlet Center: 3.31 inches
• Trim Material: Brass/Cast Brass
• Type: Non-Rising Stem
