JOMAR 103-403G Gate Valve Non-rising Stem Solder Connection 200 WOG

Product Description

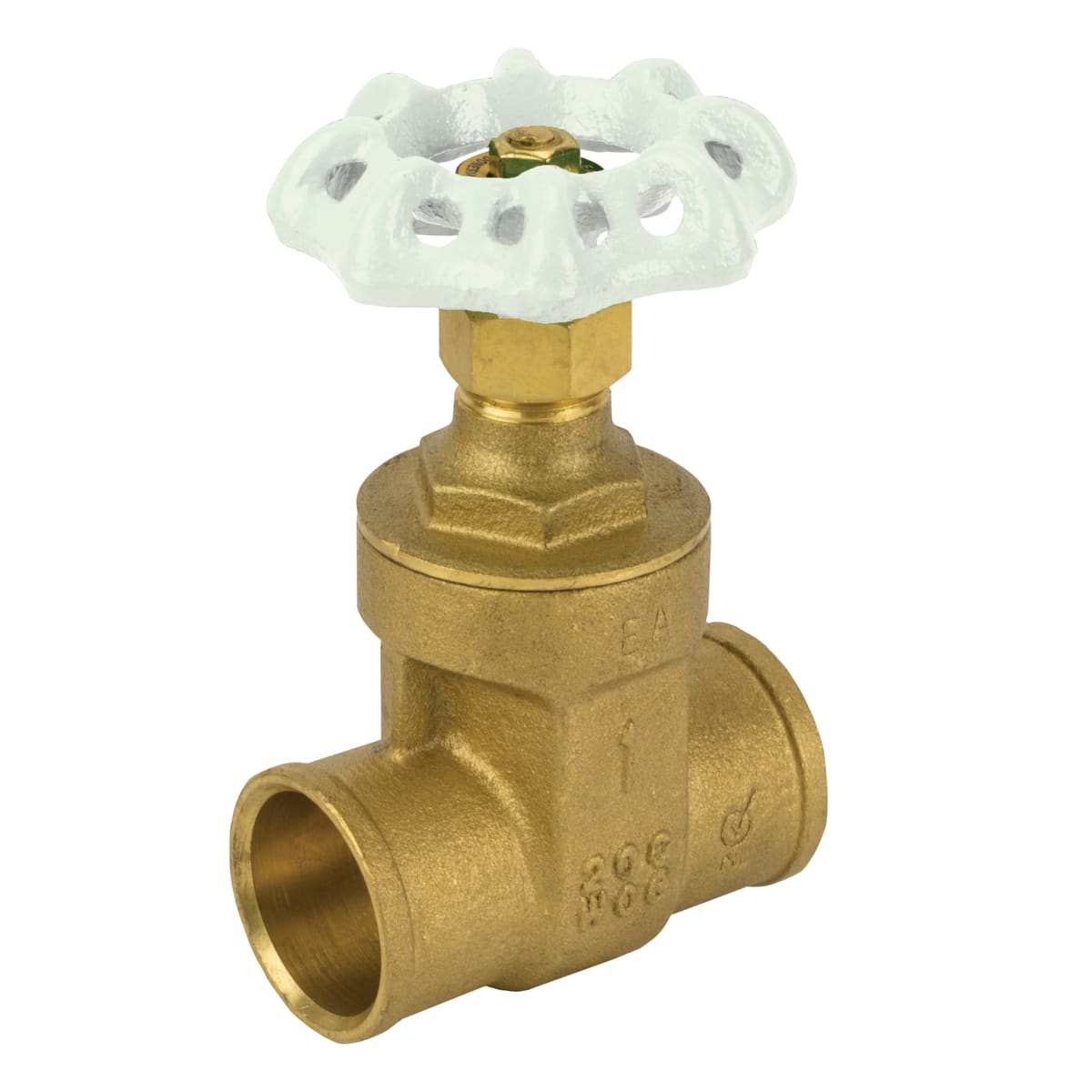

The JOMAR Gate Valve with MPN 103-403G features a non-rising stem design and is suitable for solder connections. This valve operates with a maximum pressure of 200 psi WOG, making it reliable for various piping applications. With an inlet to outlet length of one point seventy-seven inches and a handwheel actuator for easy operation, this valve is a vital component in plumbing systems.

• Non-rising stem design for space efficiency.
• Includes a cast brass body and brass/cast brass trim.
• Meets ASME/ANSI B16.18 standards and is lead-free compliant.

Product Highlights

This gate valve is ideal for applications requiring a sturdy, lead-free solution with a solder connection. It is manufactured in an ISO-9001 facility, ensuring high-quality construction.

Product Information

Standard Information

• Manufacturer: JOMAR
• Product SKU: JOM 103-403G

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Brass
• End Style: Solder
• Hand Wheel Diameter: 2.13 inches
• Inlet to Outlet Length: 1.77 inches
• Nominal Size: 1/2 inches
• Pressure Rating: 200 psi WOG
• Softgoods Material: Buna-N Gland Packing
• Top to Inlet Center: 2.84 inches
• Trim Material: Brass/Cast Brass
• Type: Non-Rising Stem
