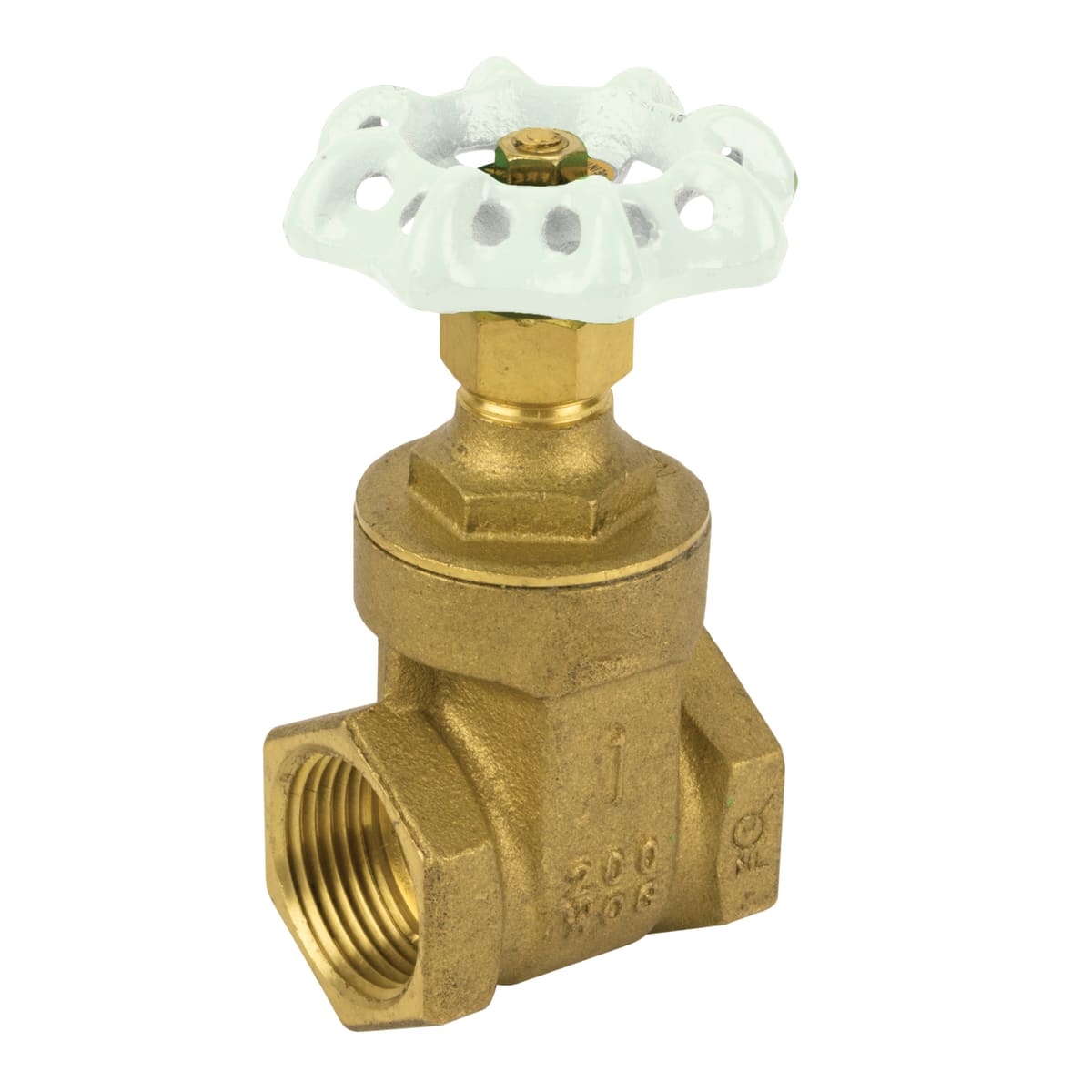

Jomar 103-308G Gate Valve, Non-rising Stem, Threaded Connection, 200 WOG

Product Description

The Jomar 103-308G is a gate valve featuring a non-rising stem. It is designed for threaded connections and operates under a pressure rating of 200 WOG. The valve has a cast brass body with brass and cast brass trim. Its handwheel actuator provides an efficient way to control fluid flow.

• Solid wedge gate design
• Lead-free construction
• Handwheel for easy operation

Product Highlights

Ideal for various plumbing applications, this gate valve is suitable for systems where a non-rising stem design is preferred. It provides security against leaks and is compliant with lead-free standards.

Product Information

Standard Information

• Manufacturer: JOMAR
• UPC: 662527294463

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Brass
• End Style: FNPT
• Hand Wheel Diameter: 3.27 inches
• Inlet to Outlet Length: 2.84 inches
• Nominal Size: 2 inches
• Pressure Rating: 200 psi WOG
• Softgoods Material: Buna-N Gland Packing
• Top to Inlet Center: 6.03 inches
• Trim Material: Brass/Cast Brass
• Type: Non-Rising Stem
