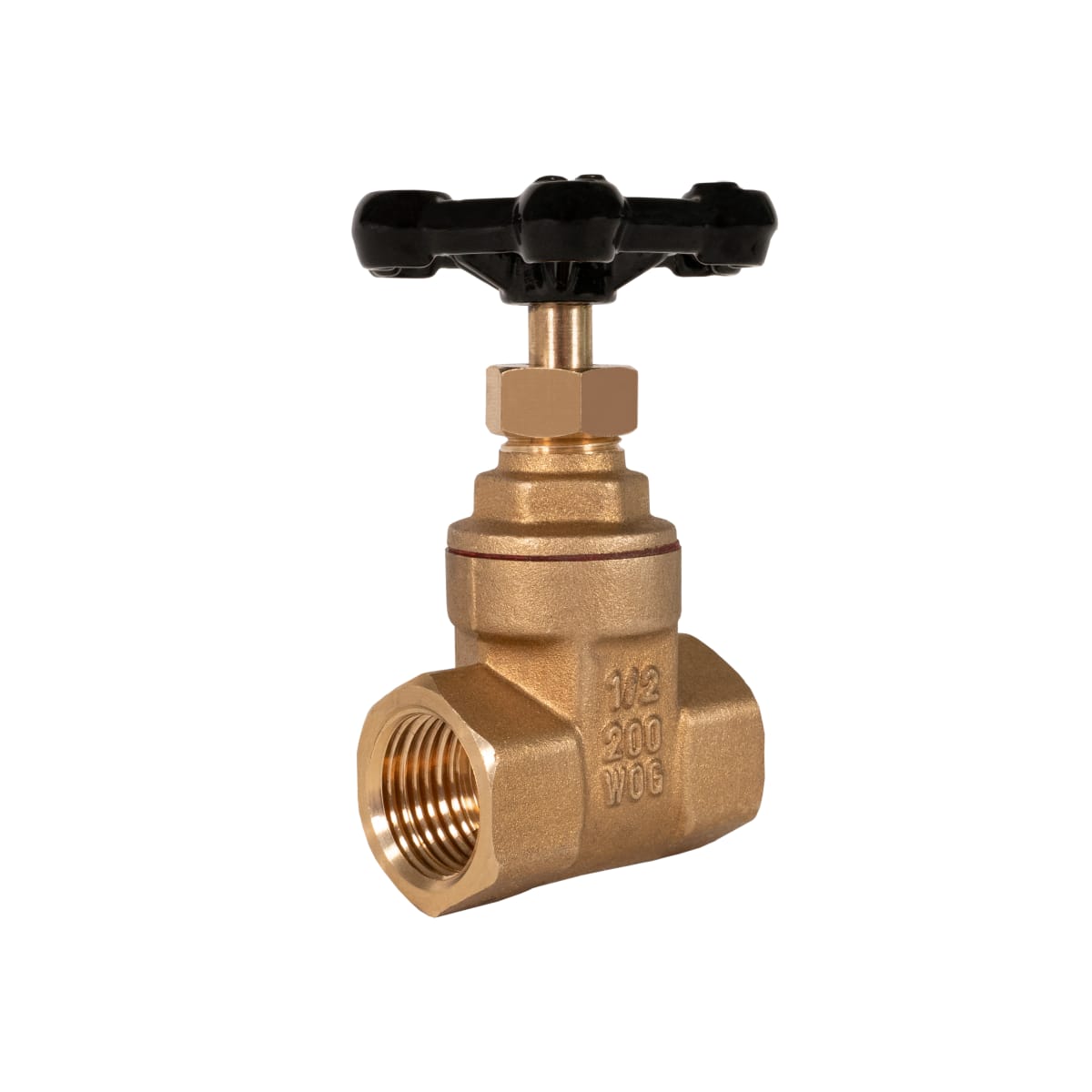

JOMAR 103-306 Regular Brass Gate Valve, Non-rising Stem, Threaded Connection, 200 WOG

Product Description

The JOMAR 103-306 is a regular brass gate valve designed with a non-rising stem and a threaded connection. It can handle up to 200 WOG. The valve is suitable for systems requiring reliable isolation and flow control.

• Threaded connection for easy installation
• Non-rising stem design
• Durable cast brass construction

Product Highlights

This gate valve is ideal for water, oil, and gas applications. It features a handwheel actuator for straightforward operation and precise flow regulation.

Product Information

Standard Information

• Manufacturer: JOMAR
• UPC: 662527295736

Technical Specifications

• Nominal Size: 1-1/4 inches
• Actuator Type: Handwheel
• Body Material: Cast Brass
• End Style: FNPT
• Hand Wheel Diameter: 2-3/4 inches
• Inlet to Outlet Length: 2.4 inches
• Pressure Rating: 200 psi WOG
• Softgoods Material: Buna-N Gland Packing
• Top to Inlet Center: 4.57 inches
• Trim Material: Brass
• Type: Non-Rising Stem
