Jomar 102-653G full port, 2 piece, compression connection, stainless steel ball 600 WOG 1/2 inch 4 pack

Product Description

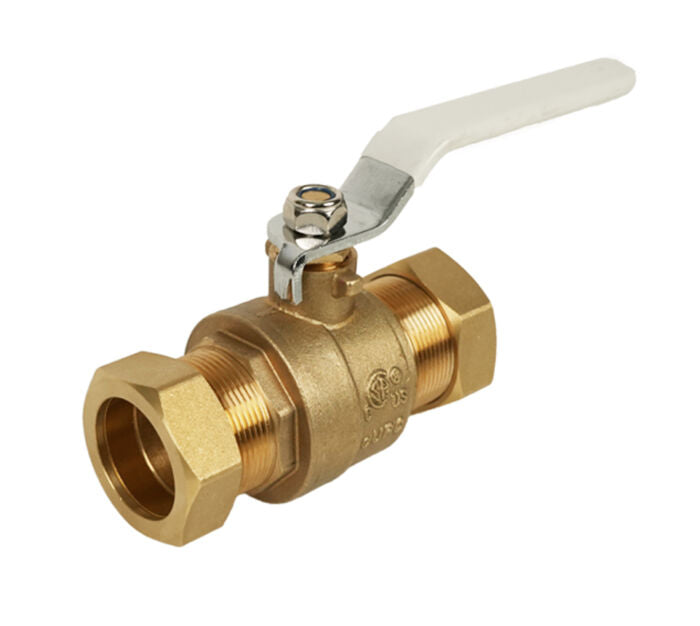

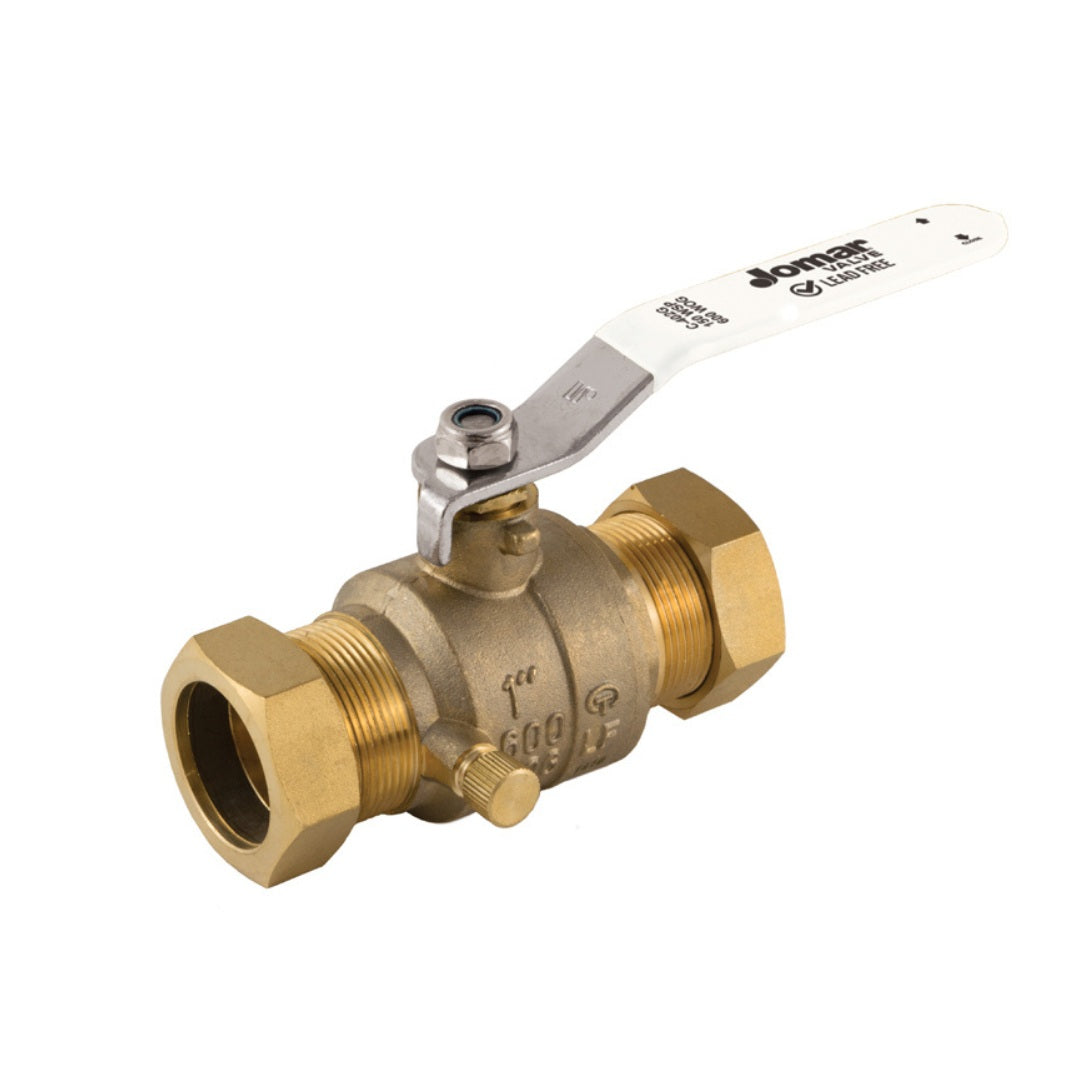

Jomar 102-653G is a 2-piece ball valve with a full port and compression connection, designed for robust performance. It features a 304 stainless steel ball and a lead free brass body, rated for 600 psi WOG pressure. The valve has a 1.8 inch top to inlet center and a 2.99 inch inlet to outlet length. Its construction includes a 304 stainless steel stem and PTFE seat trim, with Buna-N/PTFE softgoods, ensuring durability and efficient flow control.

• Drain feature prevents freeze-up
• Eliminates seat damage during soldering
• Compression ends ease maintenance

Product Highlights

Blow-out proof stem and 100% leak tested for enhanced safety and reliability.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 102-653G

Technical Specifications

• Type: 2-Piece
• End Style: Compression
• Port Type: Full
• Nominal Size: 1/2 in
• Ball Material: 304 Stainless Steel
• Body Material: Lead Free Brass
• Trim Material: 304 Stainless Steel Stem and PTFE Seat
• Pressure Rating: 600 psi WOG
• Softgoods Material: Buna-N/PTFE
• Top to Inlet Center: 1.8 in
• Inlet to Outlet Length: 2.99 in
• Valve Type: Ball Valve
• Handle Type: Lever
• Model Number: C-402G
• Certifications: ['IAPMO Certified', 'NSF/ANSI 372-2020', 'NSF/ANSI/CAN 61-2019', 'Uniform Plumbing Code (cUPC) (1/2 inch – 2 inch)', 'IAPMO/ANSI Z1157-2014e1 (R2019)', 'NSF/ANSI 14-2018']
