Product Description

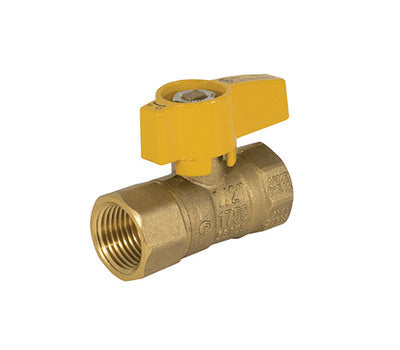

The Jomar Gas Ball Valve, MPN 102-605, is a two-piece valve designed for effective flow control in gas piping systems. This valve operates under a pressure rating of one hundred seventy-five pounds per square inch gauge (psig). The valve has a nominal size of one inch and features female National Pipe Taper (FNPT) ends. Constructed with chrome-plated brass for durability, it is also suitable for temperatures ranging from minus twenty to three hundred degrees Fahrenheit. The total length from inlet to outlet measures two point eight seven inches.
- Two-piece design for reliable use
- Gland follower with a single O-ring stem design
- Compatible with various gas applications
Product Highlights
This valve is suitable for a range of gas systems and has been tested to ensure no leaks occur during operation, making it a safer choice for professionals.
Product Information
Standard Information
-
Manufacturer: JOMAR
-
Type: Gas Ball Valve
Technical Specifications
-
Pressure Rating: 175 psig
-
Nominal Size: 1 in
-
Body Material: Brass
-
Ball Material: Chrome Plated Brass
-
Temperature Rating: -20 to 300 deg F
-
Inlet to Outlet Length: 2.87 in
-
Top to Inlet Center: 1.69 in
-
Softgoods Material: PTFE/Buna-N
-
Trim Material: Brass Stem and PTFE Seat
-
Connection Type: FIP x FIP
