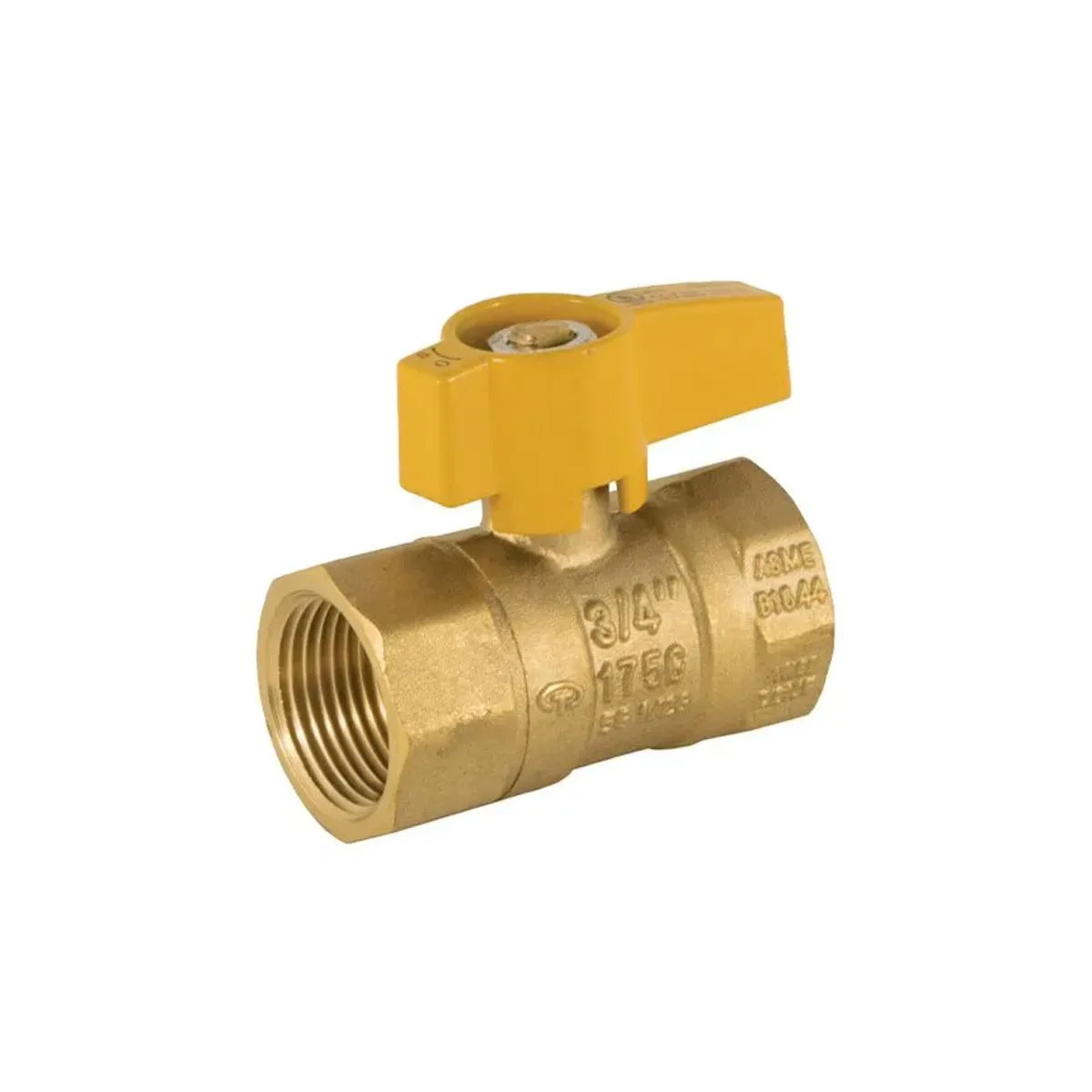

JOMAR 102-604 Gas Ball Valve, 2 Piece, 175 WOG

Product Description

The JOMAR Gas Ball Valve, MPN 102-604, is a 2-piece valve designed for fluid control in various applications. It features a nominal size of three-fourths of an inch and is rated for a maximum pressure of one hundred seventy-five psi. This valve is suitable for both residential and commercial use, operating effectively at temperatures ranging from negative twenty to three hundred degrees Fahrenheit.

• Durable chrome-plated brass ball and brass body
• Designed with a yellow locking lever handle
• Built to ANSI and ASME standards

Product Highlights

This gas ball valve includes a gland follower and single O-ring stem design, allowing easy locking in open or closed positions. It is entirely leak tested, ensuring reliable performance.

Product Information

Standard Information

• Manufacturer: JOMAR
• Type: 2-Piece

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: FNPT
• Inlet to Outlet Length: 2.35 inches
• Nominal Size: 3/4 inches
• Pressure Rating: 175 psig
• Softgoods Material: PTFE/Buna-N
• Temperature Rating: -20 to 300 degrees F
• Top to Inlet Center: 1.57 inches
• Trim Material: Brass Stem and PTFE Seat
