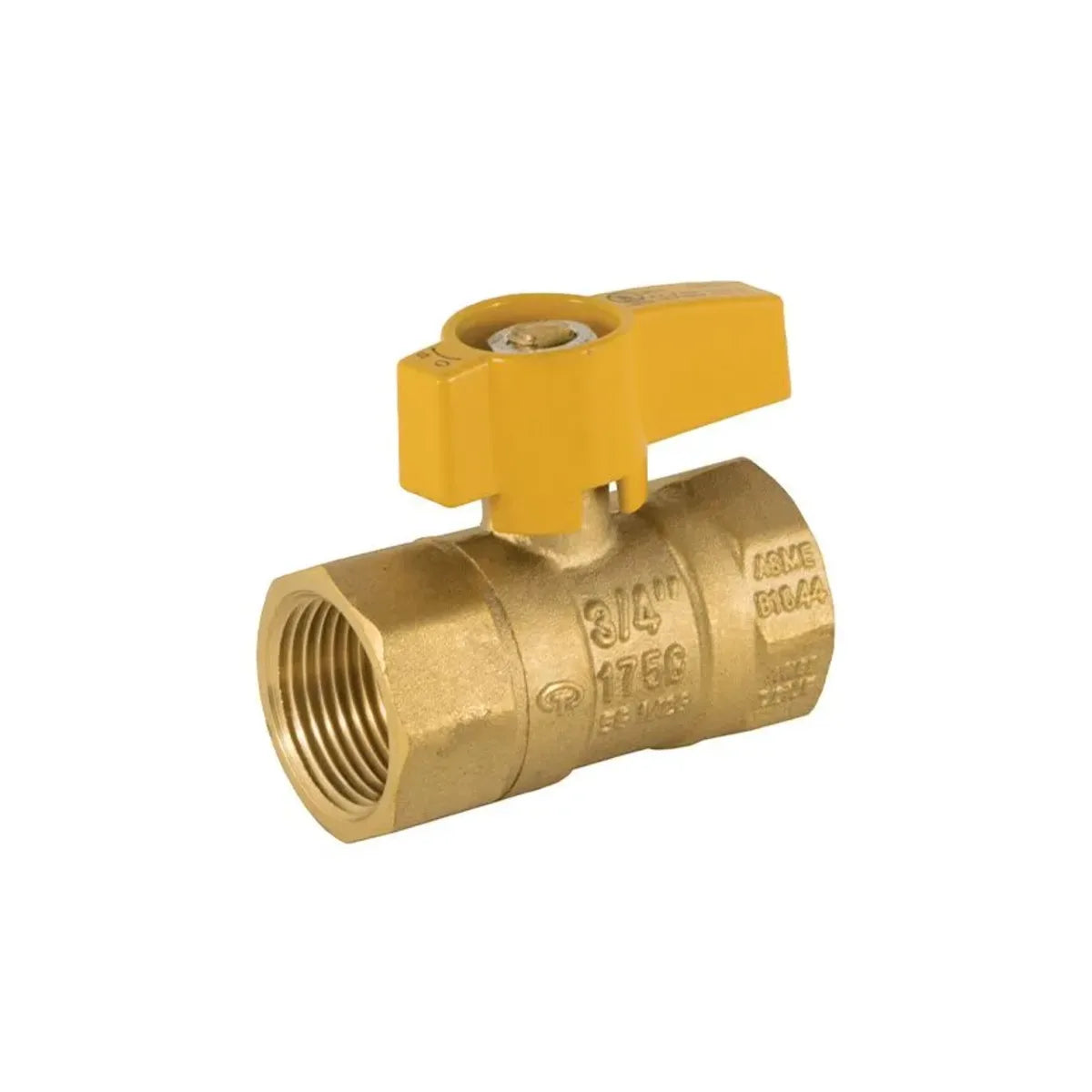

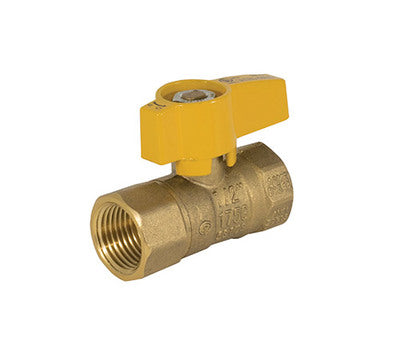

Jomar 102-603 Gas Ball Valve, 2 Piece, 175 WOG

Product Description

The Jomar 102-603 is a gas ball valve designed for reliable performance in various piping applications. This valve features a 2-piece construction that allows for easy maintenance and installation. It operates at a pressure rating of 175 psig and can handle temperatures ranging from -20 to 300 degrees Fahrenheit.

• Gland follower design with a single O-ring stem
• Locking mechanism to secure valve in open or closed position
• 100% leak tested before leaving the factory

Product Highlights

This gas ball valve is ideal for both residential and commercial applications, ensuring safe and efficient operation in gas systems.

Product Information

Standard Information

• Type: 2-Piece
• Connection Type: FNPT

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Brass
• Nominal Size: 1/2 inch
• Pressure Rating: 175 psig
• Temperature Rating: -20 to 300 degrees Fahrenheit
• Inlet to Outlet Length: 2.2 inches
• Top to Inlet Center: 1.44 inches
• Softgoods Material: PTFE/Buna-N
• Trim Material: Brass Stem and PTFE Seat
