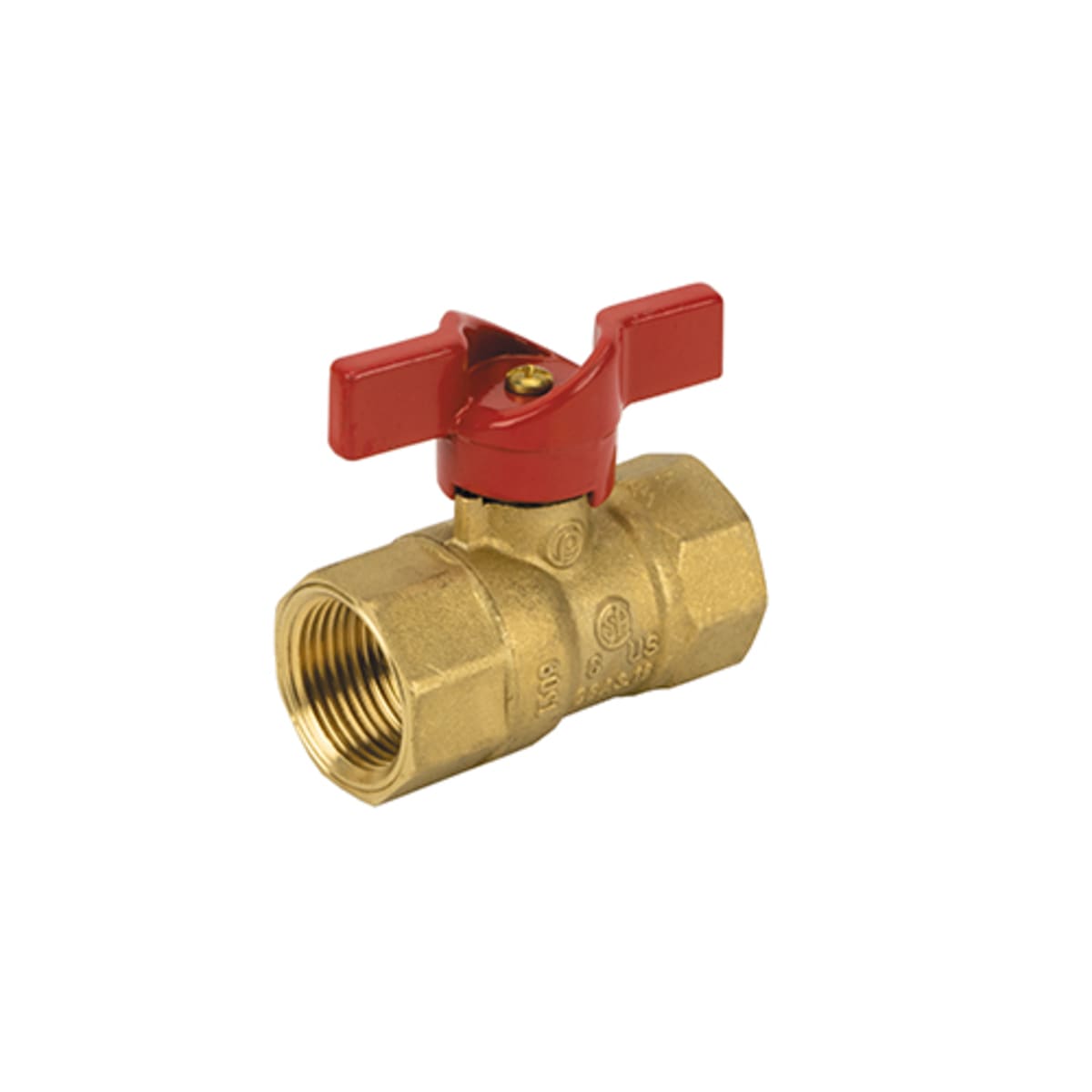

Jomar 102-505 Gas Ball Valve, 2 Piece, 400 WOG

Product Description

The Jomar 102-505 Gas Ball Valve is a 2-piece valve designed for gas applications with a working pressure of up to four hundred pounds per square inch. This valve features a T-handle actuator and a chrome plated brass ball, offering reliability in function. The nominal size of the valve is one inch with FNPT connections for easy integration into piping systems.

• Constructed from brass for durability
• Triple sealing stem design with FKM O-rings
• Lifetime limited warranty against leaks

Product Highlights

This valve provides reliable performance for gas shutoff needs with a focus on safety and efficiency in gas line management.

Product Information

Standard Information

• Manufacturer: Jomar
• Part Number: 102-505

Technical Specifications

• Actuator Type: T-Handle
• Body Material: Brass
• Ball Material: Chrome Plated Brass
• Inlet to Outlet Length: 3.08 inches
• Nominal Size: 1 inch
• Pressure Rating: 400 psi WOG
• Top to Inlet Center: 2.21 inches
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
• End Style: FNPT
• Softgoods Material: PTFE/FKM
