Jomar 102-503 Ball Valve T-205 Brass 1/2 Inch Female 2-Piece T-Handle 400WOG

Product Description

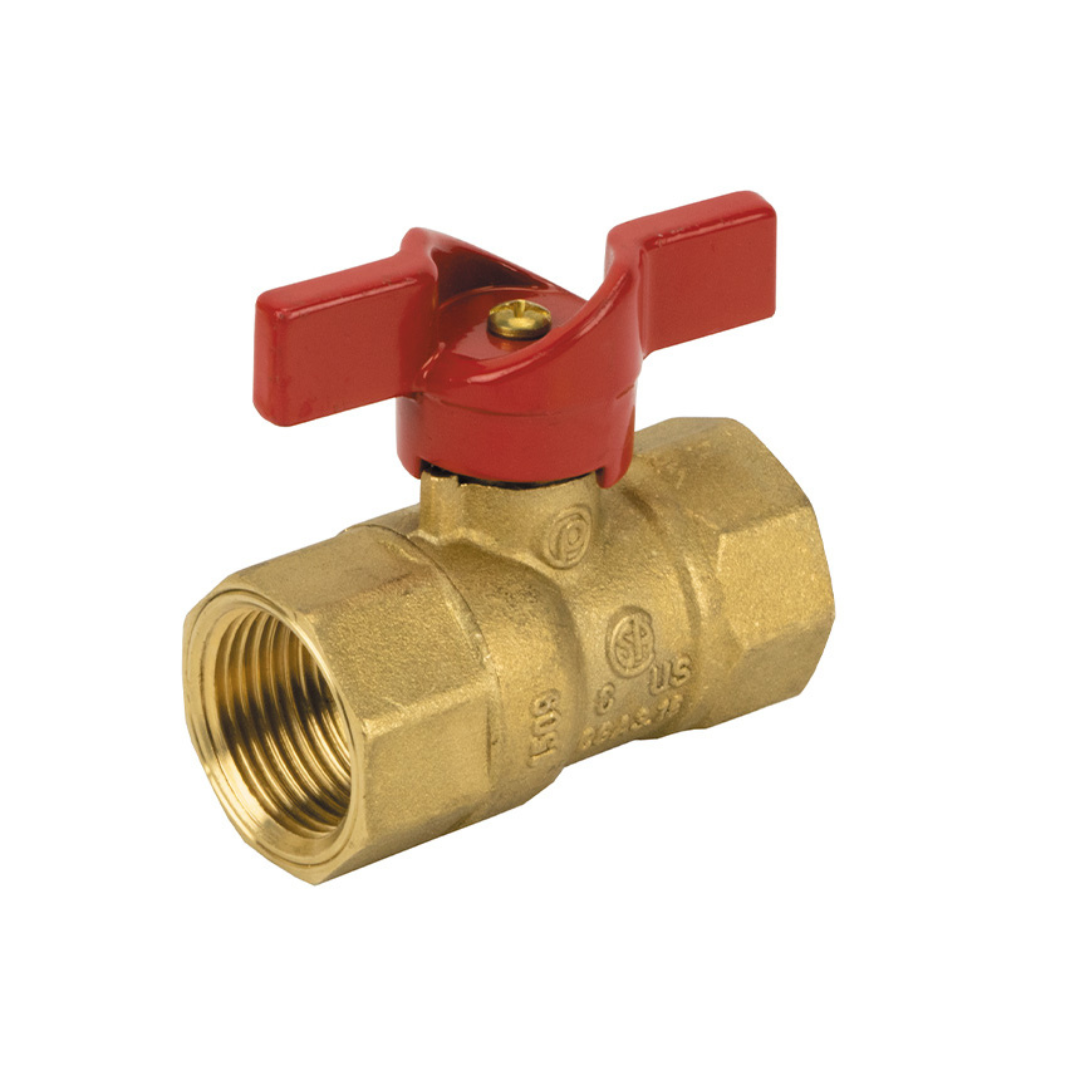

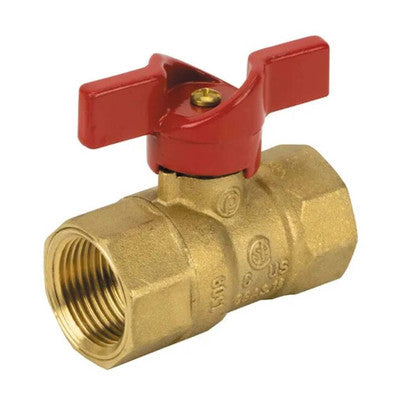

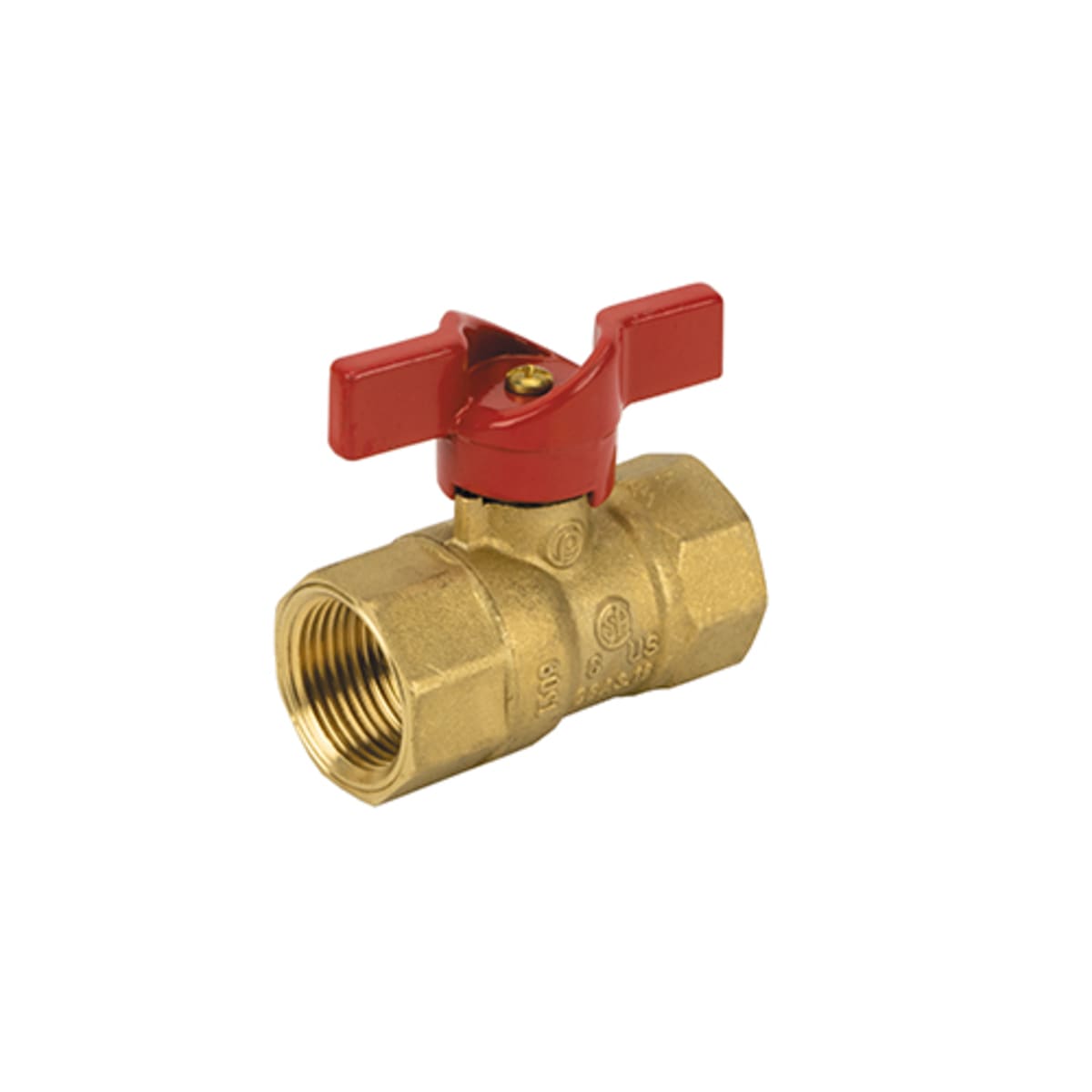

The JOMAR 102-503 ball valve T-205 is a brass, 2-piece valve with a 1/2 inch female end connection and a T-handle. This valve is designed for gas applications and has a 400WOG pressure rating. It features a chrome plated brass ball and a PTFE seat trim.

• Brass body material
• 1/2 inch female connection
• 400 WOG pressure rating

Product Highlights

The JOMAR 102-503 is suitable for gas applications, featuring a T-handle actuator and a 2-piece design.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 102-503
• Country of Origin: Italy

Technical Specifications

• Brand: Jomar
• Material: Brass
• Size: 1/2IN
• End Connection: Female
• Product Type: 2-Piece
• Handle Type: T-Handle
• Pressure Rating: 400 PSI (WOG)
• End to End Distance: 2.23IN
• Series/Model: Model T-205
• Temperature Rating: 0 - 450 DEG F
• Handle Material: Aluminum
• Stem Material: Brass
• Trim Material: Brass Stem and PTFE Seat
• Packing Material: PTFE
• Gland: Brass
• Seat Material: PTFE
• Seal Material: Teflon Seal, Viton O-Ring
• Body Material Specification: CW617N
• Stem, Ball And Gland Material Specification: CW614N
• Finish/Color: Chrome Plated Ball, Red Handle
• Industry Standards: NSI B1.20.1, CSA Certified
• Width: 2.23 IN
• Lead Free: No
• Other Physical Dimension: 1.73 IN Inlet Center To Top Of Handle, 2.23 IN Handle Length
• Actuator Type: T-Handle
• Ball Material: Chrome Plated Brass
• Domestic/Import: Import
• End Style: FNPT
• Inlet to Outlet Length: 2.23 in
• Softgoods Material: PTFE/FKM
• Top to Inlet Center: 1.73 in
• Connection_Type: FIP x FIP
• Suitable For: Gas
• Featured Refinements: Ball Valve
• MPN: T-205 102-503
• Thread: Female
• Shape: Inline
• Operation: Manual
• Connection: Threaded
• Connection Size: 1/2"
• Country of Origin: Italy
• Application: Gas
• Valve Type: Ball Valve
• Body Style: 2 Piece
