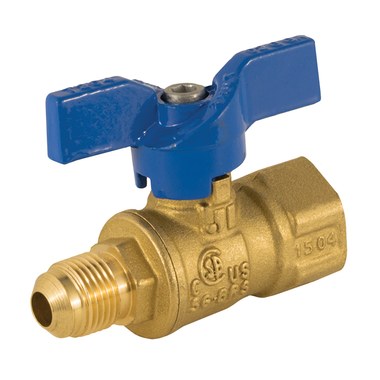

Jomar 102-405 Ball Valve T-203 Brass 1/2 Inch Female x Flare 2-Piece with Side Tap

Product Description

The Jomar 102-405 is a two-piece brass ball valve designed for gas applications. This valve features a half-inch female by flare connection and is rated for 600 WOG. The side tap allows for pressure gauge installation, facilitating easy monitoring. The rugged brass construction ensures durability in various conditions.

• Size: 1/2 inch
• End Connection: Female x Flare
• Pressure Rating: 600 WOG

Product Highlights

This valve is ideal for heating systems and gas line installations. Its design eliminates the need for test tees, reducing installation time and labor. The removable plug allows access for pressure gauge installation.

Product Information

Standard Information

• Brand: Jomar
• Material: Brass
• Type: 2-Piece with Side Tap

Technical Specifications

• Nominal Size: 1/2 inch
• End Connection: Female x Flare
• Handle Type: T-Handle
• Inlet to Outlet Length: 2.87 inches
• Softgoods Material: FKM
• Trim Material: Brass Stem and PTFE Seat
• Shipping Weight: 6.700 lbs
• Domestic/Import: Import
