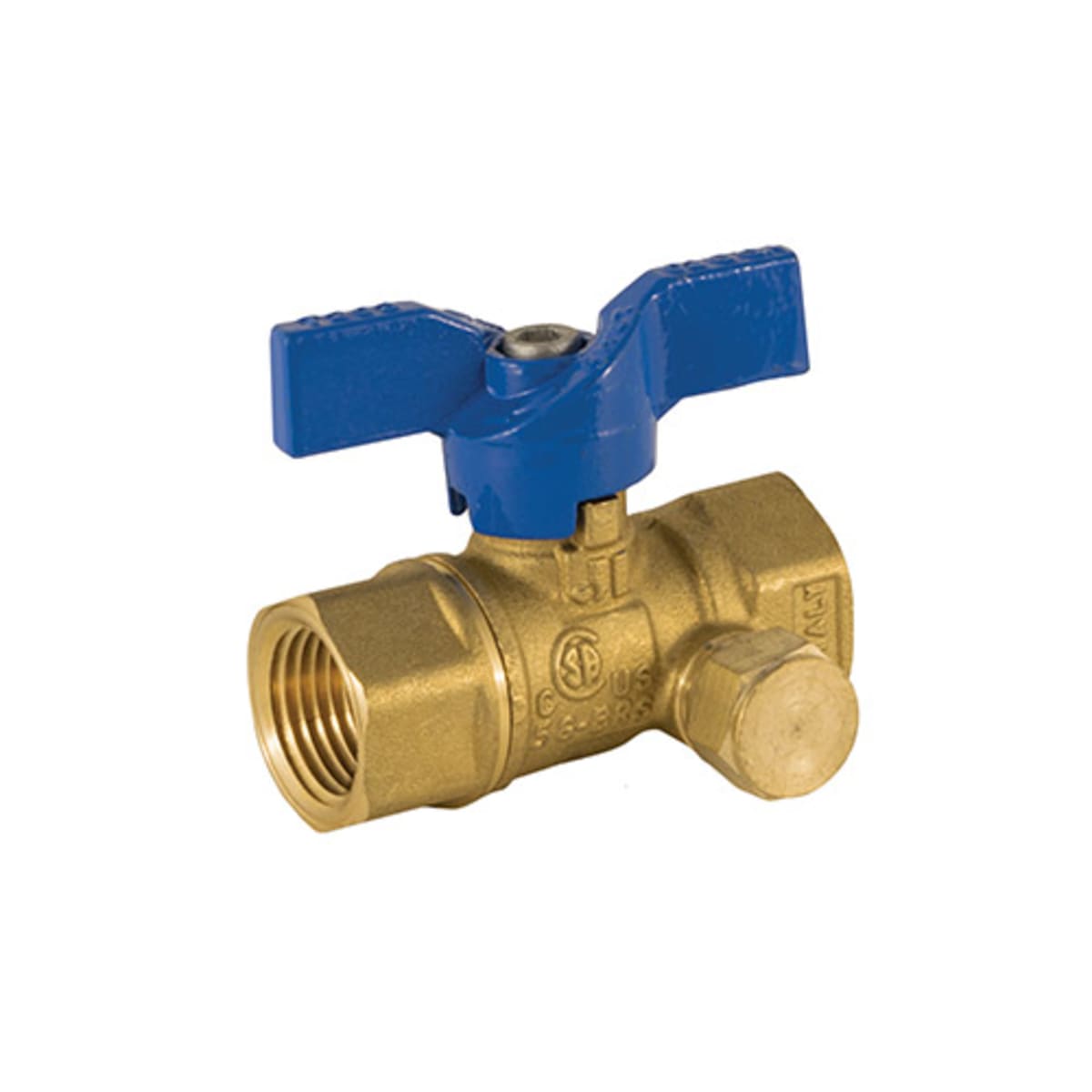

JOMAR 102-301 Gas Ball Valve, 2 Piece, 600 WOG, with Side Tap

Product Description

The JOMAR Gas Ball Valve, part number 102-301, is a two-piece valve designed for high pressure. This valve features a side tap for additional functionality and operates at 600 psi WOG. The chrome-plated brass ball ensures durability and resistance to corrosion. Installation is simplified, making this valve suitable for various applications.

• Two-piece construction for enhanced strength
• Side tap allows for pressure gauge installation
• Suitable for outdoor use in cold climates

Product Highlights

This gas ball valve is essential for gas line applications. It can be locked in a closed position by reversing the handle. The valve is designed to be leak-proof and comes with a lifetime warranty on the stem.

Product Information

Standard Information

• Manufacturer: JOMAR
• UPC: 662527291462

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Brass
• Type: 2-Piece
• End Style: FNPT
• Nominal Size: 1/4 in
• Pressure Rating: 600 psi WOG
• Inlet to Outlet Length: 1.99 in
• Top to Inlet Center: 1.63 in
• Softgoods Material: PTFE/FKM
• Trim Material: Brass Stem and PTFE Seat
