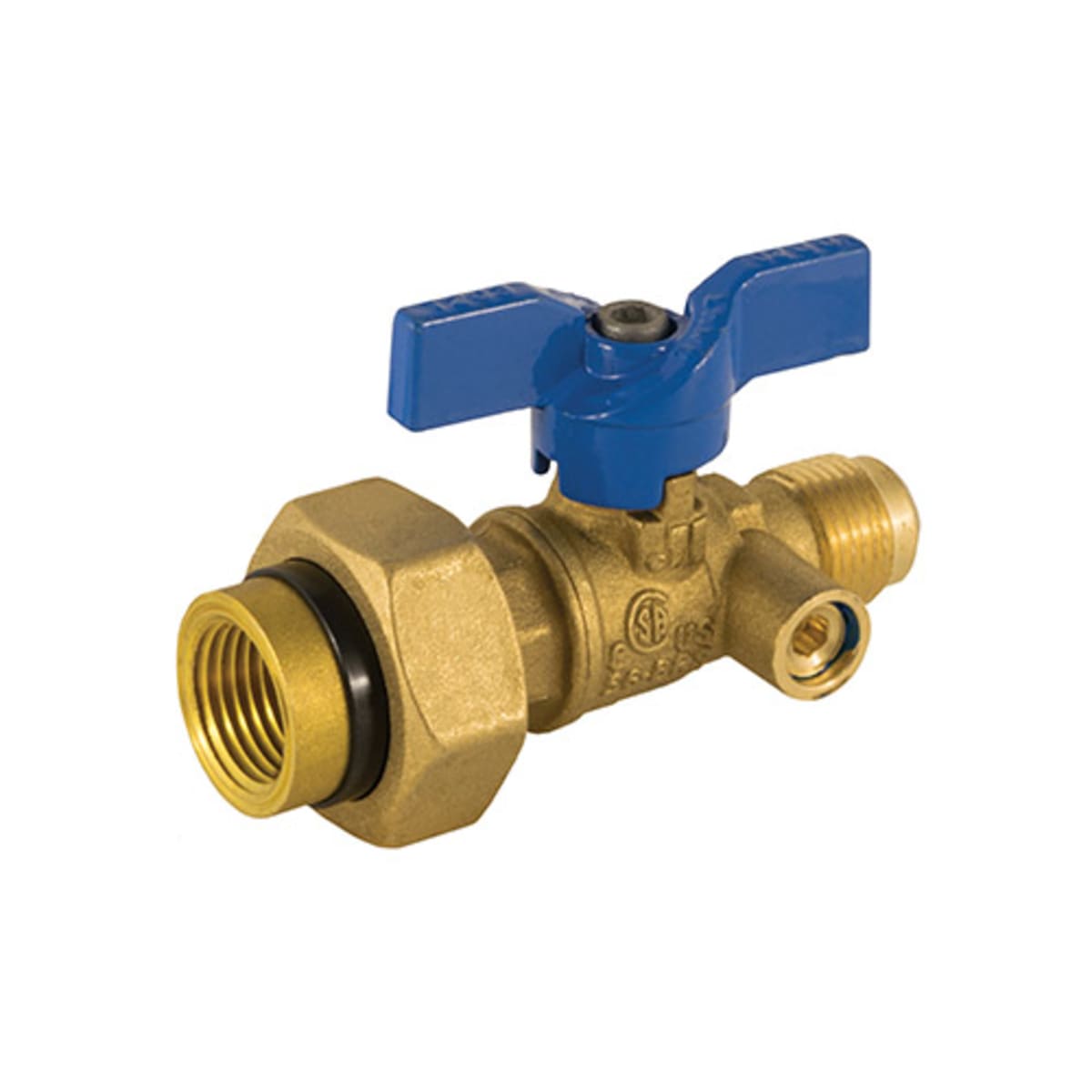

JOMAR 101-513DU Gas Ball Valve, 2 Piece, Integrated Dielectric Union End, 600 WOG

Product Description

The JOMAR Gas Ball Valve with MPN 101-513DU is a two-piece valve designed for handling gas applications. It features a durable brass body and integrates a dielectric union end, providing reliable service in various installation environments.

• Locking mechanism to secure valve in the closed position
• Leak-proof design with lifetime warranty on stem
• Integrated dielectric union for enhanced performance

Product Highlights

This gas ball valve is ideal for residential and commercial gas systems that require dependable shut-off capabilities and compliance with industry standards.

Product Information

Standard Information

• Manufacturer: JOMAR
• UPC: 662527297433

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Brass
• Pressure Rating: 600 psi WOG
• Nominal Size: 1/2 in
• End Style: FNPT UE x Flare
• Inlet to Outlet Length: 3.54 in
• Top to Inlet Center: 1.63 in
• Softgoods Material: PTFE/FKM/Buna-N
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
• Domestic/Import: Import
