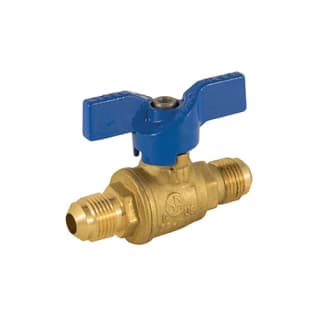

JOMAR 101-502 Gas Ball Valve, 2 Piece, 600 WOG

Product Description

JOMAR 101-502 Gas Ball Valve features a two-piece design suitable for various piping applications. This valve is rated for 600 psi WOG and is essential in managing gas flow. It includes a T-handle actuator and is made from durable chrome-plated brass. The design allows for easy handling and long-lasting operation.

• Lockable closed position by reversing the handle
• 100 percent leak-tested for reliability
• Lifetime warranty on the leak-proof stem

Product Highlights

The JOMAR 101-502 valve is built for performance and durability. Ideal for gas shutoff applications, it ensures safe operation in demanding environments.

Product Information

Standard Information

• Manufacturer: JOMAR
• Type: 2-Piece

Technical Specifications

• Nominal Size: 3/8 x 1/2 inches
• Pressure Rating: 600 psi WOG
• Actuator Type: T-Handle
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: Flare x FNPT
• Inlet to Outlet Length: 2.67 inches
• Top to Inlet Center: 1.63 inches
• Softgoods Material: PTFE/FKM
• Trim Material: Brass Stem and PTFE Seat
• Domestic/Import: Import
