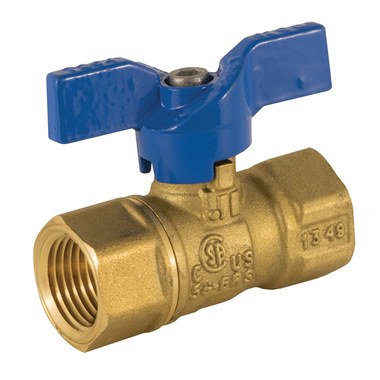

Jomar 101-401 Gas Ball Valve, 2 Piece, 600 WOG

Product Description

Jomar 101-401 Gas Ball Valve is a two-piece valve designed for efficient gas control. It operates at a pressure rating of six hundred psi and features a T-Handle actuator. This valve is suitable for various plumbing applications and is engineered for durability and reliability.

• Constructed with a chrome plated brass ball for enhanced resistance.
• Includes a leak-proof stem with a lifetime warranty.
• Complies with ANSI B1.20.1 and CSA certification standards.

Product Highlights

This gas ball valve is ideal for installations requiring secure shutoff and high performance in gas pipelines.

Product Information

Standard Information

• Manufacturer: JOMAR
• Type: 2-Piece

Technical Specifications

• Actuator Type: T-Handle
• Nominal Size: 1/4 in
• End Style: FNPT
• Inlet to Outlet Length: 1.85 in
• Top to Inlet Center: 1.63 in
• Body Material: Brass
• Ball Material: Chrome Plated Brass
• Pressure Rating: 600 psi WOG
• Softgoods Material: PTFE/FKM
