Jomar 100-978 2 T-CS 1001N-SS CS THRD Ball Valve 2 IN

Product Description

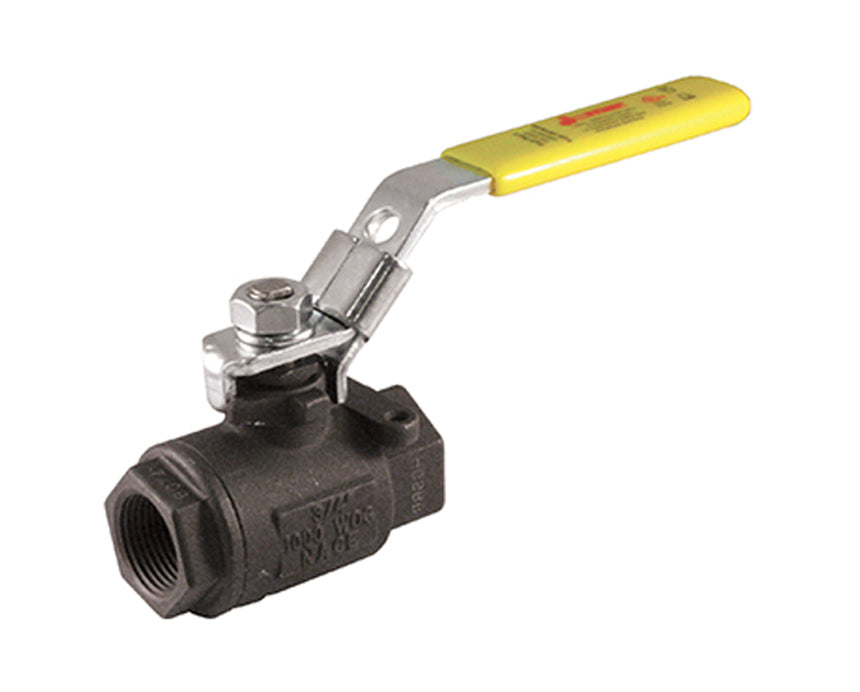

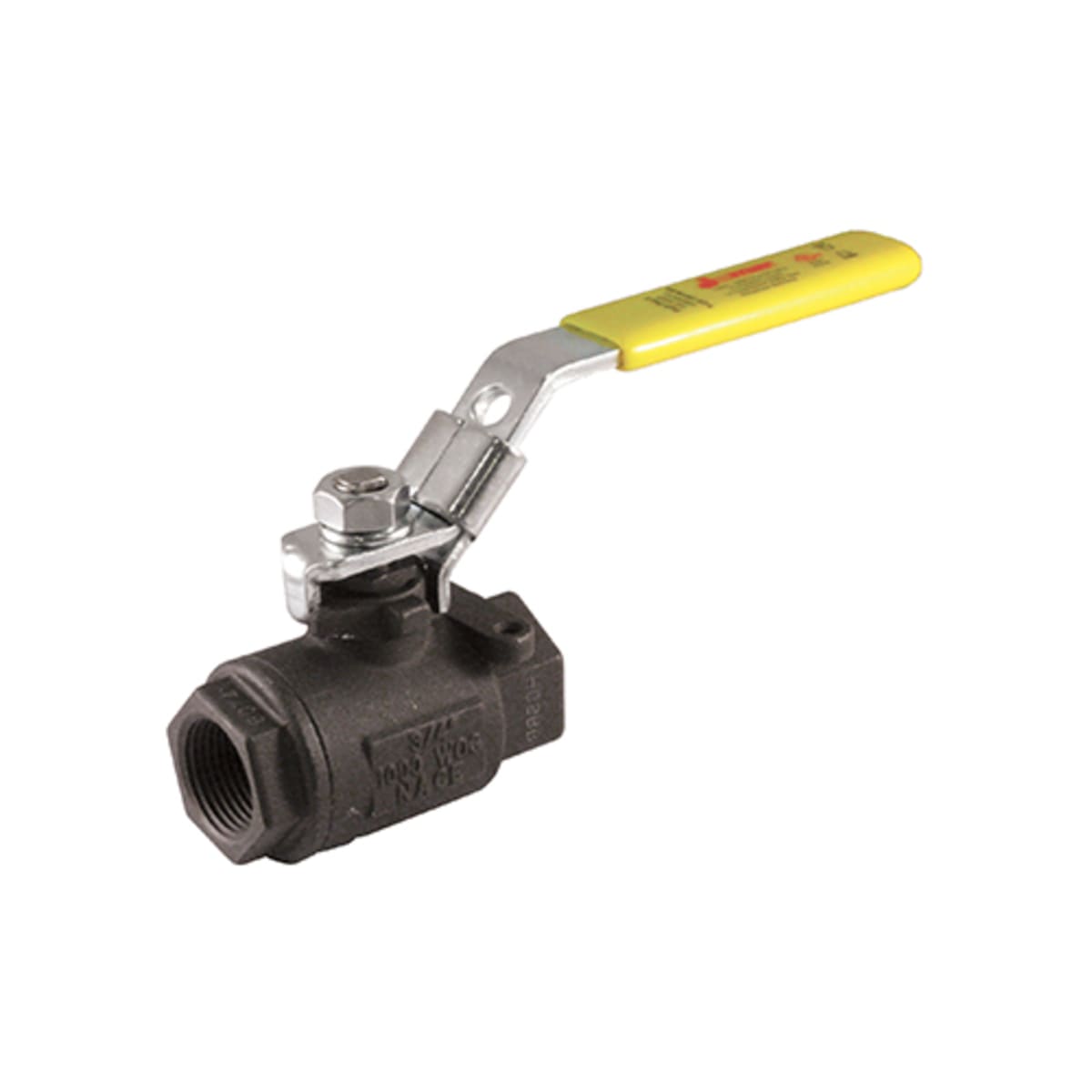

The JOMAR 100-978 is a 2-piece full-port ball valve with a 2 IN nominal size and FNPT connection. It features a carbon steel body and a locking lever handle. Designed for durability, this valve is suitable for various applications requiring reliable flow control. It has a pressure rating of 1000 PSI (WOG) and 150 PSI (SWP).

• 2-Piece Full-Port Ball Valve
• FNPT Connection
• Carbon Steel Body
• Locking Lever Handle

Product Highlights

Durable carbon steel ball valve with locking lever handle and FNPT connection.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 100-978

Technical Specifications

• Series/Model: Model T-CS-1001N-SS
• Nominal Size: 2 IN
• Connection Type: FNPT
• Pressure Rating: 1000 PSI (WOG), 150 PSI (SWP)
• Body Material: Carbon Steel
• Handle Operator Type: Locking Lever Handle
• Handle Material: Carbon Steel
• Stem Material: 316 Stainless Steel
• Trim Material: Stainless Steel Ball
• Packing Material: RPTFE
• Gland Material: Carbon Steel
• Seat Material: TFM 1600 Hostaflon®
• Seal Material: TFM 1600 Hostaflon®
• Body Material Standard: Grade WCB
• Handle Material Standard: ASTM A283
• Ball Material Standard: Grade CF8M
• Gland Material Specification: AISI 1045
• Industry Standards: C/US UL Listed, MSS-SP-110, MSS-SP-61, MSS-SP-82, ANSI B16.34, API 598, NACE Certified
• Width: 5 IN
• Lead Free: No
• Inlet Center To Top Of Handle: 4.24 IN
• Handle Length: 8.08 IN
• Torque Rating: 250 IN-LB
• Type: Heavy Duty Valves
• Material: Carbon Steel
• Connection: Threaded Connection
• Piece: 2 Piece
• Port: Full Port
• Item Name: Ball Valve
• Operator Type: Locking Lever Handle
• Material Standard: Body: Grade WCB, Handle: ASTM A283, Ball: Grade CF8M
• Material Specification: Gland: AISI 1045
• Family: T-CS-1001N-SS
• Size: 2"
• Ball and Stem: Stainless Steel
