Jomar 100-974 3/4 T-CS 1001N-SS CS THRD Ball Valve

Product Description

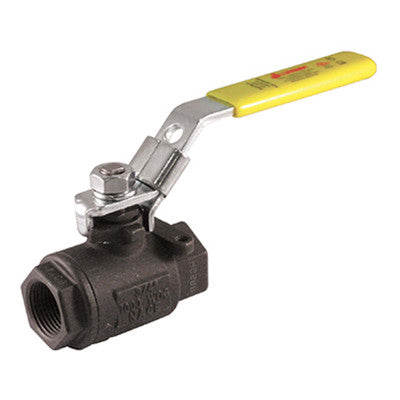

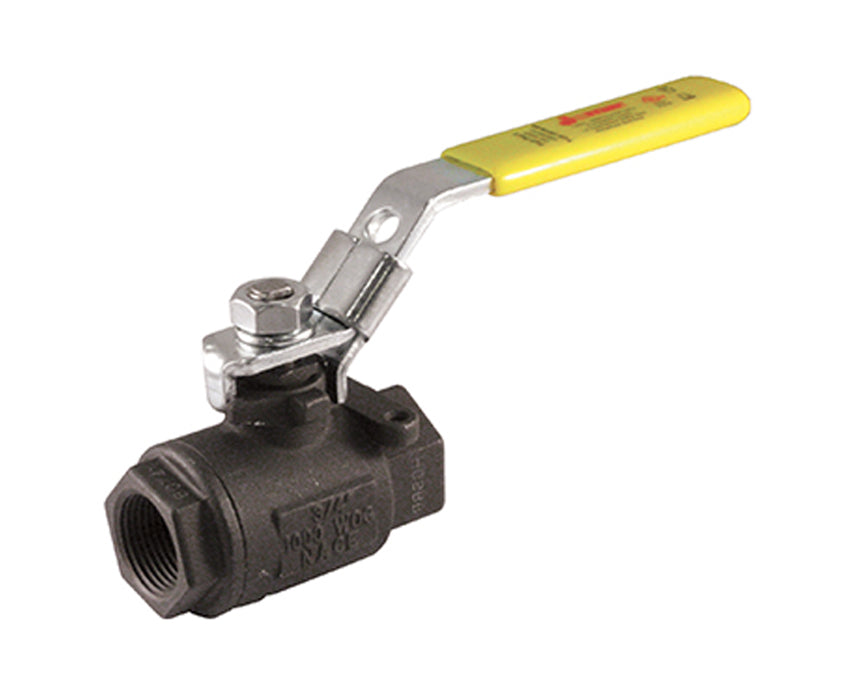

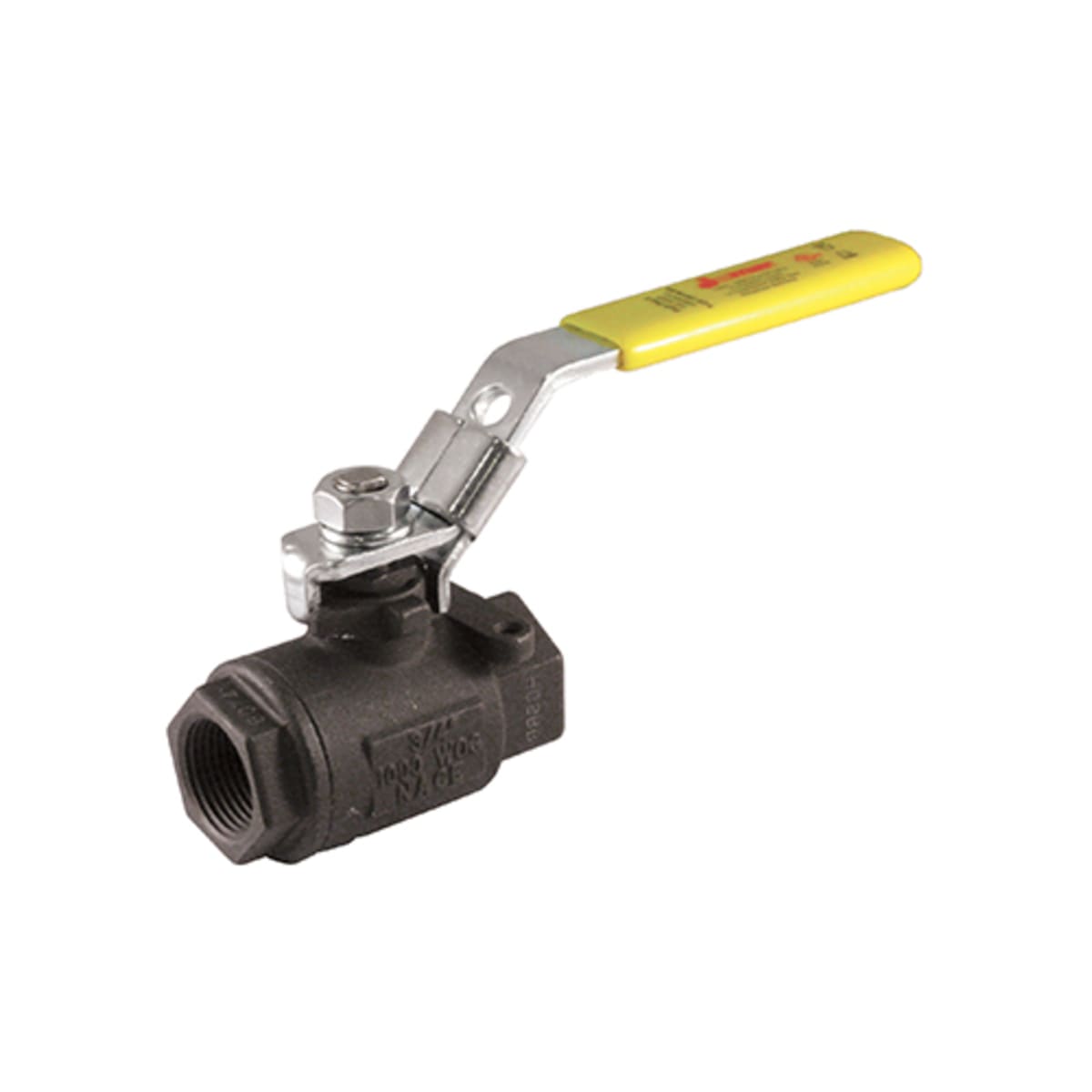

The JOMAR 100-974 is a 3/4 IN 2-Piece Full-Port Ball Valve, part of the Model T-CS-1001N-SS series. It features FNPT connection type and a pressure rating of 1000 PSI (WOG) and 150 PSI (SWP). The valve has a carbon steel body, a locking lever handle, and a 316 stainless steel stem.

• 2-Piece Full-Port Ball Valve
• Locking Lever Handle
• Stainless Steel Ball

Product Highlights

This Jomar ball valve is suitable for various applications requiring a reliable shut-off mechanism. It is designed with a carbon steel body and stainless steel trim.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 100-974

Technical Specifications

• Series/Model: Model T-CS-1001N-SS
• Nominal Size: 3/4 IN
• Connection Type: FNPT
• Pressure Rating: 1000 PSI (WOG), 150 PSI (SWP)
• Body Material: Carbon Steel
• Operator Type: Locking Lever Handle
• Handle Material: Carbon Steel
• Stem Material: 316 Stainless Steel
• Trim Material: Stainless Steel Ball
• Packing Material: RPTFE
• Gland Material: Carbon Steel
• Seat Material: TFM 1600 Hostaflon®
• Seal Material: TFM 1600 Hostaflon®
• Body Material Standard: Grade WCB
• Handle Material Standard: ASTM A283
• Ball Material Standard: Grade CF8M
• Gland Material Specification: AISI 1045
• Industry Standards: C/US UL Listed, MSS-SP-110, MSS-SP-61, MSS-SP-82, ANSI B16.34, API 598, NACE Certified
• Width: 2.99 IN
• Lead Free: No
• Inlet Center To Top Of Handle: 2.79 IN
• Handle Length: 5.73 IN
• Torque Rating: 60 IN-LB
• Actuator Type: Latch-Lock Handle
• Port Type: Full
• Softgoods Material: Hostaflon® TFM/RPTFE
• Inlet to Outlet Length: 2.99 in
• Type: 2-Piece
• Manufacturer: JOMAR
• Material: Carbon Steel
• Connection: Threaded
• Ball and Stem: Stainless Steel
• Construction: 2 Piece
• Vacuum Rating: 29 in-Hg
• Item Number: 100-974
• Brand: Jomar
• Family: T-CS-1001N-SS
• Piece: 2 Piece
• Part No.: 100-974
• End Style: FNPT
• Pressure Rating CWP: 2000 psig
• Trim Material Stem: 316 Stainless Steel Stem
• Domestic/Import: Domestic
