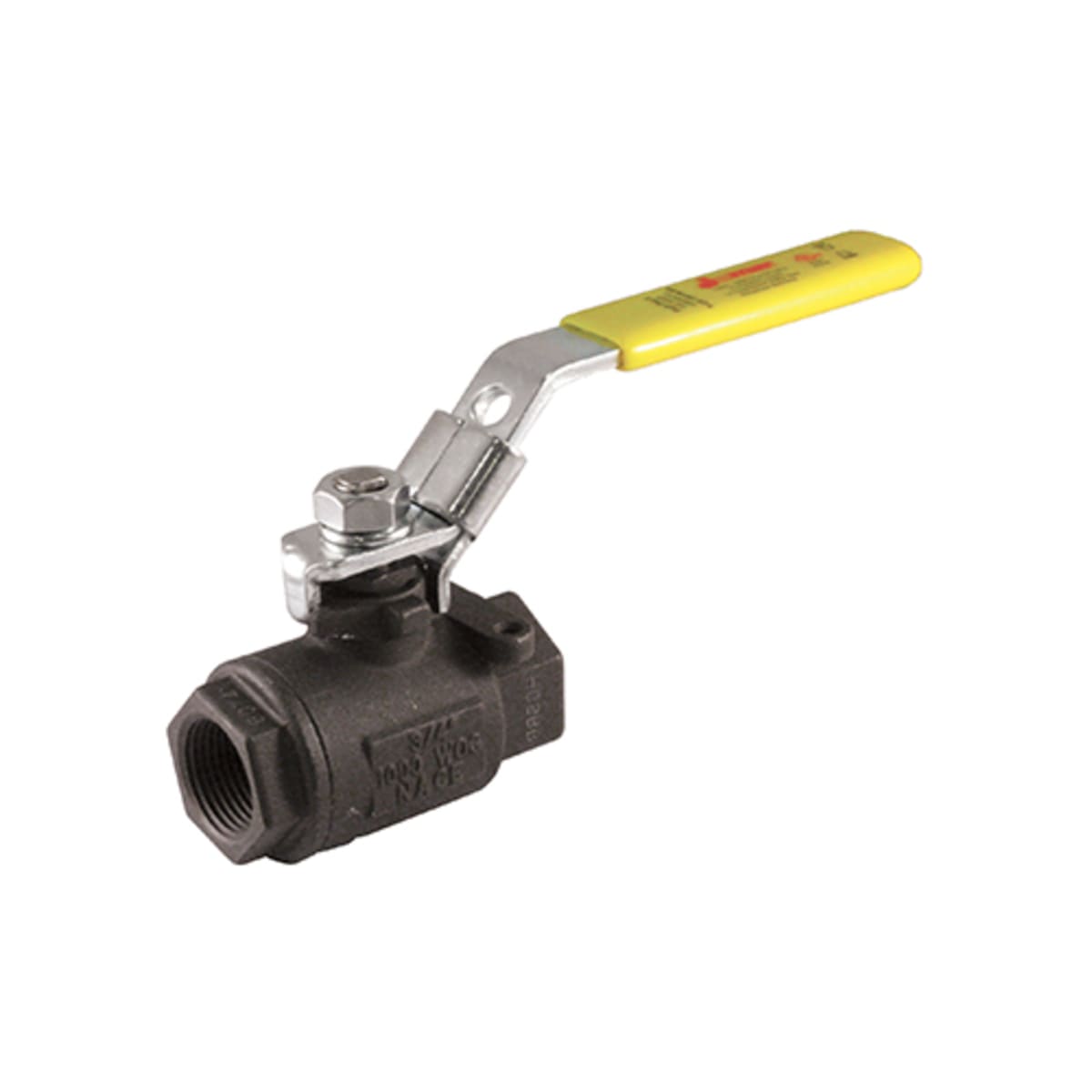

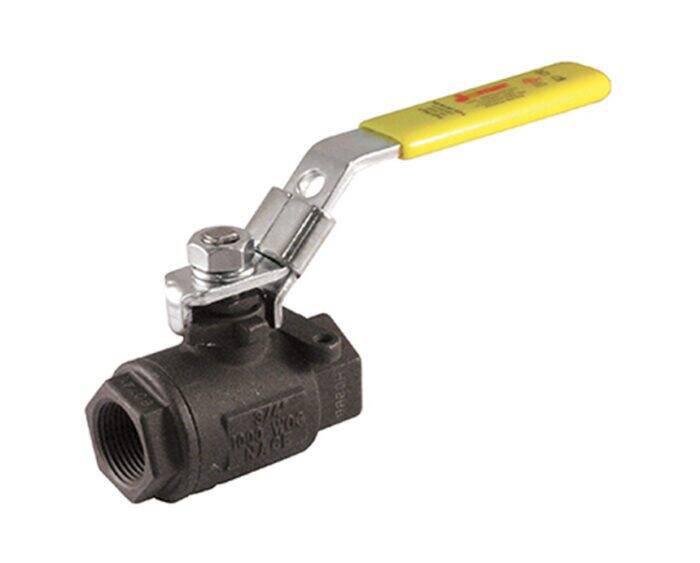

Jomar 100-973 1/2 T-CS 1001N-SS CS THRD Ball Valve

Product Description

The JOMAR 100-973 is a 2-piece full-port ball valve with a carbon steel body. It has a 1/2 IN nominal size and FNPT connection type. Designed for a pressure rating of 1000 PSI (WOG) and 150 PSI (SWP), this valve features a locking lever handle and a 316 stainless steel stem. It is suitable for various applications requiring a reliable shut-off mechanism.

• 2-Piece Full-Port Ball Valve
• Locking Lever Handle
• Solid ball construction

Product Highlights

This Jomar ball valve features a carbon steel body, stainless steel trim, and a locking lever handle for secure operation.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 100-973
• Country of Origin: USA

Technical Specifications

• Series/Model: T-CS-1001N-SS
• Nominal Size: 1/2 IN
• Connection Type: FNPT
• Pressure Rating: 2000 psig CWP
• Body Material: Carbon Steel
• Handle Operator Type: Locking Lever Handle
• Handle Material: Carbon Steel
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Stem
• Packing Material: RPTFE
• Gland Material: Carbon Steel
• Seat Material: TFM 1600 Hostaflon®
• Seal Material: TFM 1600 Hostaflon®
• Body Material Standard: Grade WCB
• Handle Material Standard: ASTM A283
• Ball Material Standard: Grade CF8M
• Gland Material Specification: AISI 1045
• Industry Standards: C/US UL Listed, MSS-SP-110, MSS-SP-61, MSS-SP-82, ANSI B16.34, API 598, NACE Certified
• Width: 2.6 IN
• Lead Free: No
• Other Physical Dimension: 2.3 IN Inlet Center To Top Of Handle, 4.21 IN Handle Length
• Torque Rating: 40 IN-LB
• Port Type: Full
• Softgoods Material: Hostaflon® TFM/RPTFE
• Top to Inlet Center: 2.3 in
• Type: 2-Piece
• WOG: 1000
• Material: Carbon Steel
• Part No.: 100-973
• Size: 1/2"
• Item Number: 100-973
• Brand: Jomar
• Connection: Threaded Connection
• Family: T-CS-1001N-SS
• Piece: 2 Piece
• Port: Full Port
• Design Type: 2-Piece
• End Connection: NPT Threaded
• Ball Material: Stainless Steel
• Handle Type: Lever
• Max Pressure: 1000 psi WOG, 150 psi steam
• Domestic/Import: Domestic
• Series: 73A-140
• Warranty: 5 Years
• Inlet to Outlet Length: 2.6 in
