Jomar 100-972 3/8 T-CS 1001N-SS CS THRD Ball Valve

Product Description

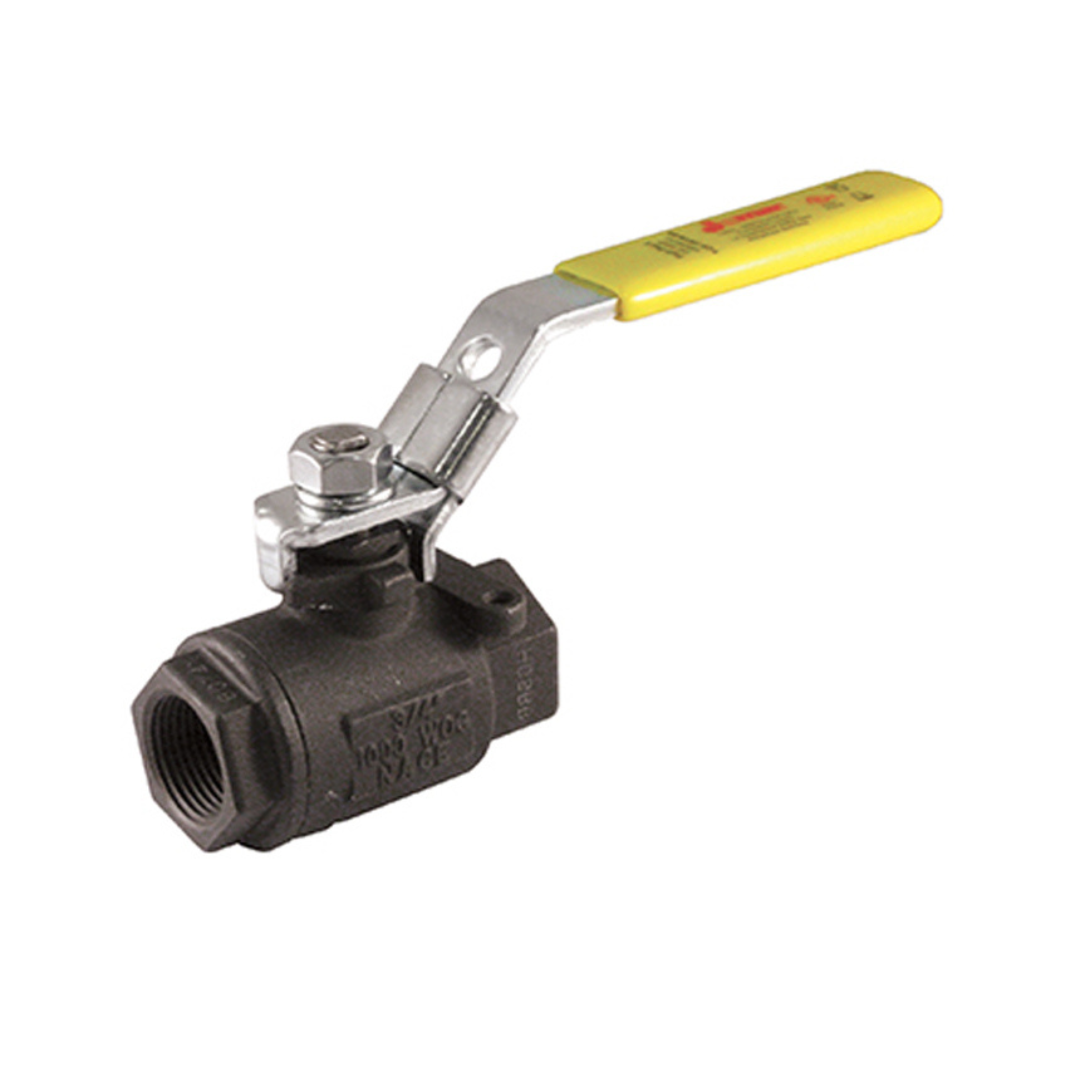

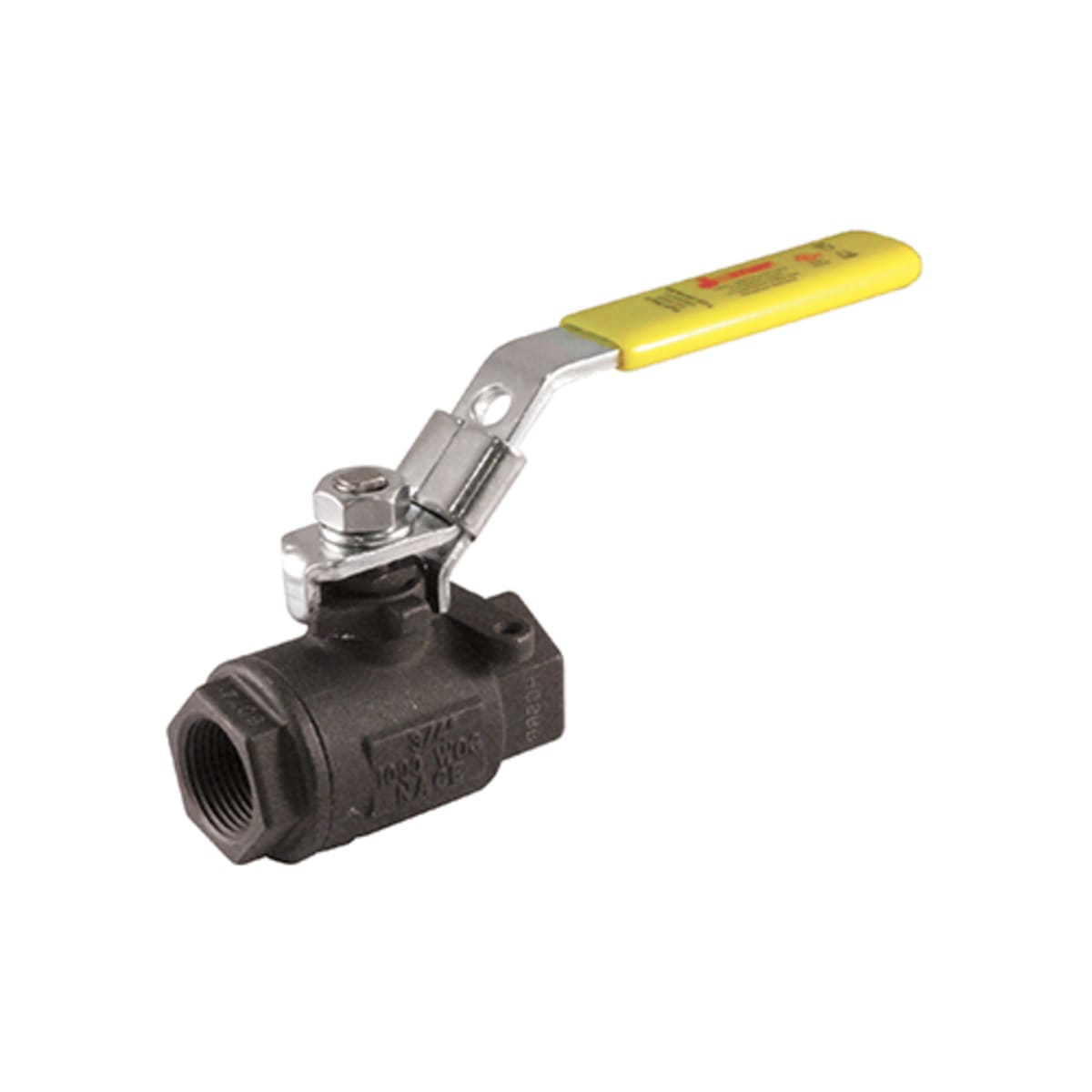

The JOMAR 100-972 is a 3/8 IN 2-Piece Full-Port Ball Valve, model T-CS-1001N-SS, designed with a carbon steel body and a locking lever handle. It features a stainless steel ball and stem, with TFM 1600 Hostaflon® seat and seal material. Suitable for various applications, this valve is rated for 1000 PSI (WOG) and 150 PSI (SWP).

• 2-Piece Full-Port Ball Valve
• Locking Lever Handle
• Carbon Steel Body

Product Highlights

This Jomar ball valve features a carbon steel body, stainless steel trim, and a locking lever handle.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 100-972

Technical Specifications

• Series/Model: Model T-CS-1001N-SS
• Nominal Size: 3/8 IN
• Connection Type: FNPT
• Pressure Rating: 1000 PSI (WOG), 150 PSI (SWP)
• Body Material: Carbon Steel
• Handle Operator Type: Locking Lever Handle
• Handle Material: Carbon Steel
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Stem
• Packing Material: RPTFE
• Gland Material: Carbon Steel
• Seat Material: TFM 1600 Hostaflon®
• Seal Material: TFM 1600 Hostaflon®
• Body Material Standard: Grade WCB
• Handle Material Standard: ASTM A283
• Ball Material Standard: Grade CF8M
• Gland Material Specification: AISI 1045
• Industry Standards: C/US UL Listed, MSS-SP-110, MSS-SP-61, MSS-SP-82, ANSI B16.34, API 598, NACE Certified
• Width: 2.2 IN
• Lead Free: No
• Other Physical Dimension: 2.2 IN Inlet Center To Top Of Handle, 4.21 IN Handle Length
• Torque Rating: 40 IN-LB
• Ball Material: Stainless Steel
• End Style: NPT
• Inlet to Outlet Length: 2.2 in
• Port Type: Full
• Softgoods Material: RPTFE Seat
• Top to Inlet Center: 2.2 in
• Type: 2-Piece
• Manufacturer: JOMAR
• WOG: 1000
• Material: Carbon Steel
• Item Number: 100-972
• Brand: Jomar
• Connection: Threaded Connection
• Family: T-CS-1001N-SS
• Piece: 2 Piece
• Port: Full Port
• Size: 3/8"
• Operator Type: Locking Lever Handle
• Material Standard: Body: Grade WCB, Handle: ASTM A283, Ball: Grade CF8M
• Material Specification: Gland: AISI 1045
• Pressure Rating (CWP): 2000 psig
• Domestic/Import: Domestic
• Warranty: 5 Years
