Product Description

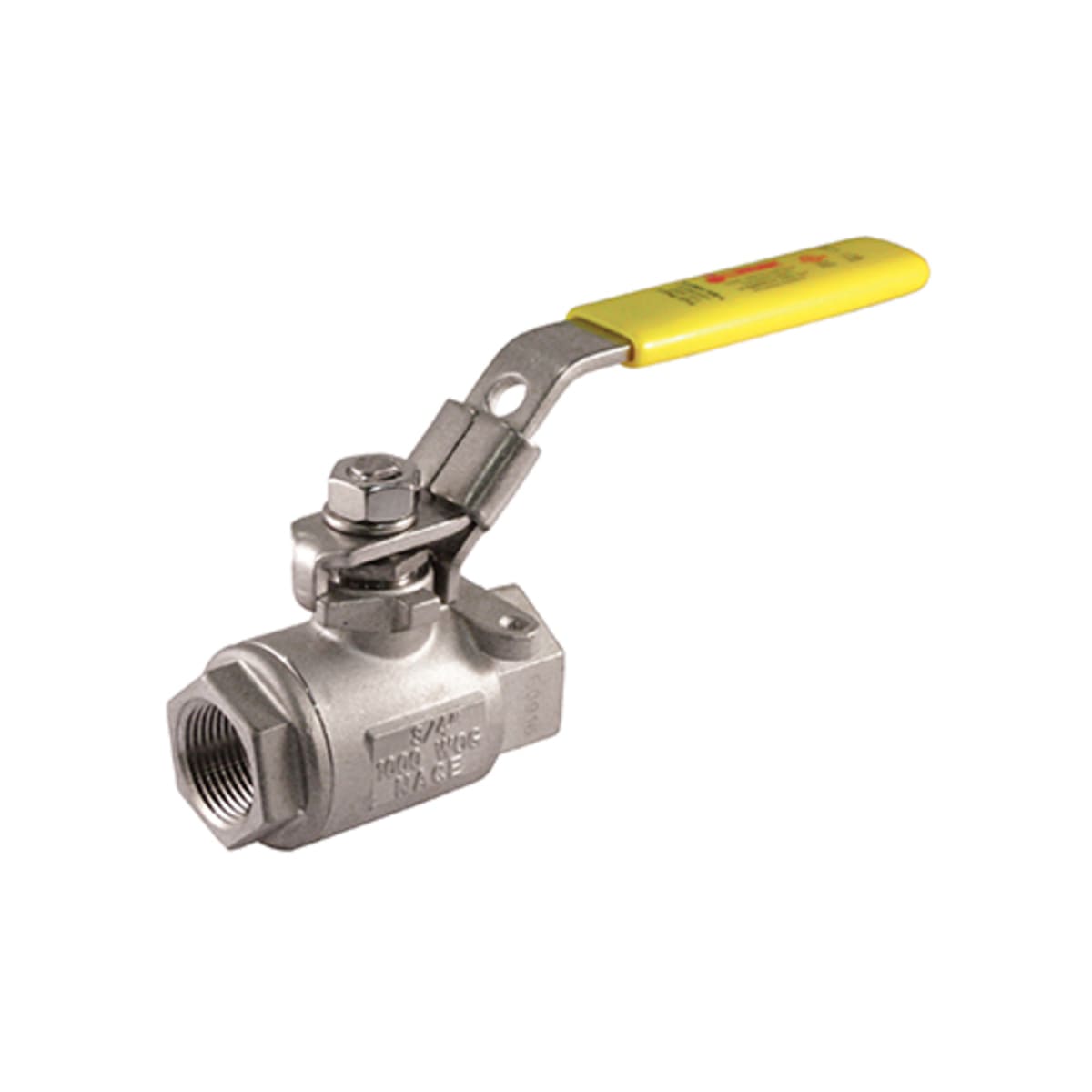

The Jomar 100-968 T-SS-1001N Steel Valve is a high-quality solution for various plumbing and hydraulic applications. Designed for durability and reliability, this valve features a full port, latch lock handle, and a two-piece threaded connection, suitable for professionals in the trade industry.
- Durable stainless steel construction
- Full port for maximum flow
- Latch lock handle for secure operation
Product Highlights
This valve is designed to handle pressures up to 1000 psi WOG, making it suitable for demanding applications. The solid ball construction ensures longevity and reliability, while the latch lock handle provides secure operation in either open or closed positions.
Product Information
Standard Information
-
Brand: Jomar
-
MPN: 100-968
-
Category: Hydraulic Equipment, Valves
-
UPC: 662527300300
Technical Specifications
-
Actuator Type: Latch-Lock Handle
-
Ball Material: Stainless Steel
-
Body Material: Stainless Steel
-
End Style: NPT
-
Inlet to Outlet Length: 5 inches
-
Nominal Size: 2 inches
-
Port Type: Full
-
Pressure Rating: 1000 psi WOG
-
Softgoods Material: Hostaflon TFM/RPTFE
-
Top to Inlet Center: 4.24 inches
-
Trim Material: 316 Stainless Steel Stem and Hostaflon TFM 1600 Seat
-
Type: 2-Piece
-
Standards/Approval: ANSI B1.20.1, API 598, CF8M Body, MSS SP-110, SP-61, SP-82, NACE Certified
