JOMAR 100-966 Full Port, 2 Piece, Threaded Connection, 1000 WOG, Stainless Steel Ball an

Product Description

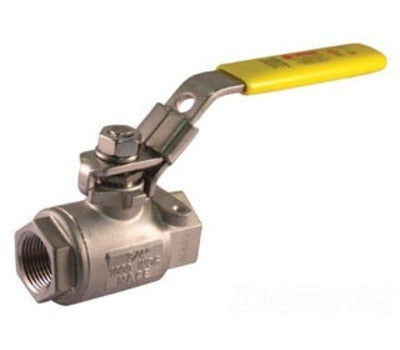

The JOMAR 100-966 is a two-piece ball valve with a full port design. It features a threaded connection and is rated for 1000 psi WOG. The valve includes a latch-lock handle actuator for secure operation. The body and ball are constructed from stainless steel, ensuring durability and resistance to corrosion.

• Full port design allows for maximum flow.
• Latch-lock handle can be locked in open or closed positions.
• Constructed from stainless steel for long-lasting use.

Product Highlights

This ball valve is suitable for a variety of applications in piping systems, providing reliable performance and safety.

Product Information

Standard Information

• Manufacturer: JOMAR
• Model Number: 100-966

Technical Specifications

• Actuator Type: Latch-Lock Handle
• Ball Material: Stainless Steel
• Body Material: Stainless Steel
• End Style: NPT
• Inlet to Outlet Length: 3.94 inches
• Nominal Size: 1-1/4 inches
• Port Type: Full
• Pressure Rating: 1000 psi WOG
• Softgoods Material: Hostaflon TFM/RPTFE
• Top to Inlet Center: 3.56 inches
• Trim Material: 316 Stainless Steel Stem and Hostaflon TFM 1600 Seat
• Type: 2-Piece
