Product Description

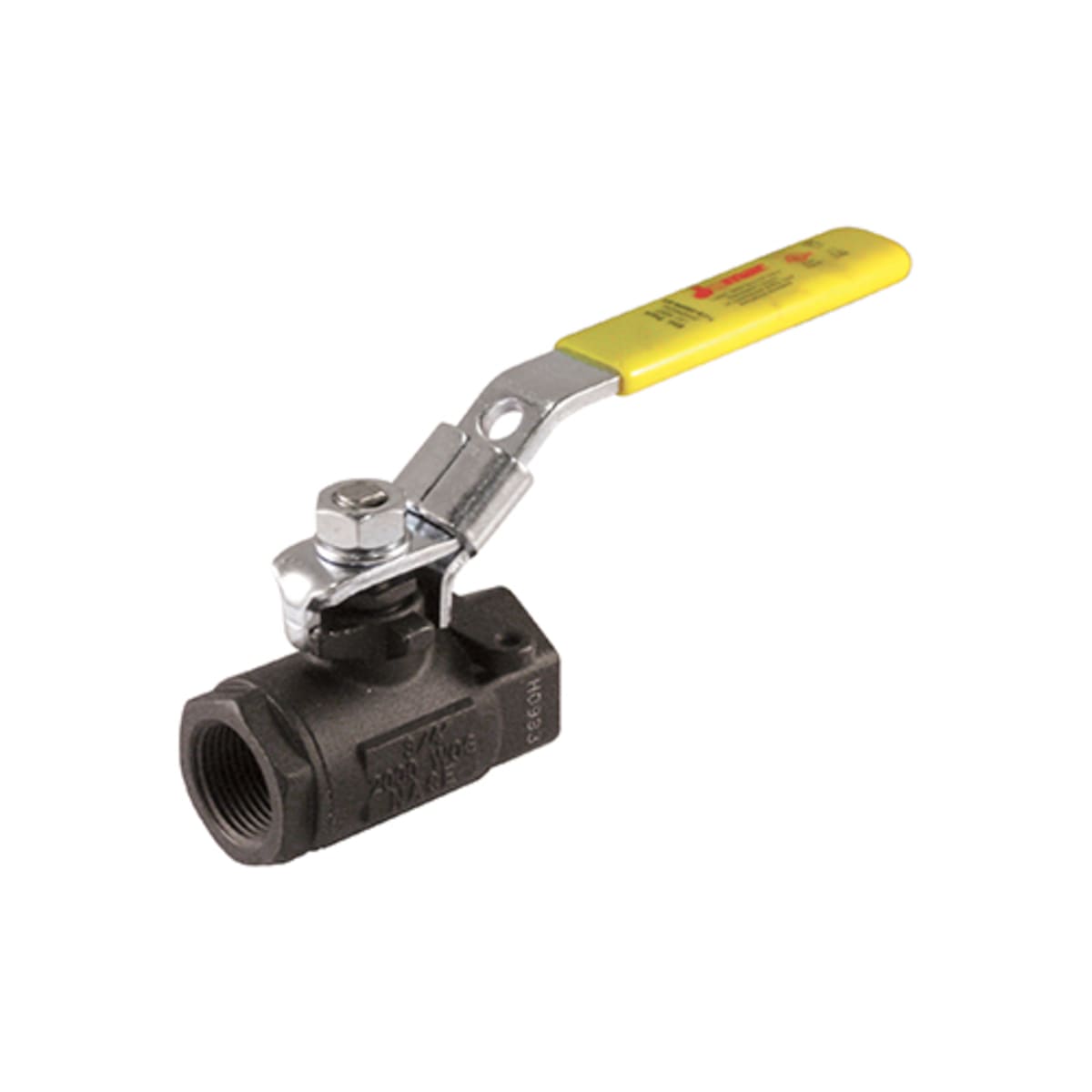

The JOMAR 100-958 is a durable ball valve designed for reliable performance. It features a two-piece construction with a standard port and threaded connection. Rated for 2000 psi WOG, this valve is suitable for various piping applications.
- Material: Stainless Steel Ball and WCB Carbon Steel Body
- Features latch-lock handle actuator for secure operation
- Vacuum rating of 29 in-Hg, 100% leak tested
Product Highlights
This valve is built to withstand demanding conditions and is certified for its low lead content, making it a safe choice for water services.
Product Information
Standard Information
-
Manufacturer: JOMAR
-
MPN: 100-958
Technical Specifications
-
Actuator Type: Latch-Lock Handle
-
Ball Material: Stainless Steel
-
Body Material: WCB Carbon Steel
-
End Style: NPT
-
Inlet to Outlet Length: 4.63 inches
-
Nominal Size: 2 inches
-
Port Type: Standard
-
Pressure Rating: 2000 psi WOG
-
Softgoods Material: Hostaflon TFM/RPTFE
-
Top to Inlet Center: 3.17 inches
-
Trim Material: 316 Stainless Steel Stem and Hostaflon TFM 1600 Seat
-
Type: 2-Piece
