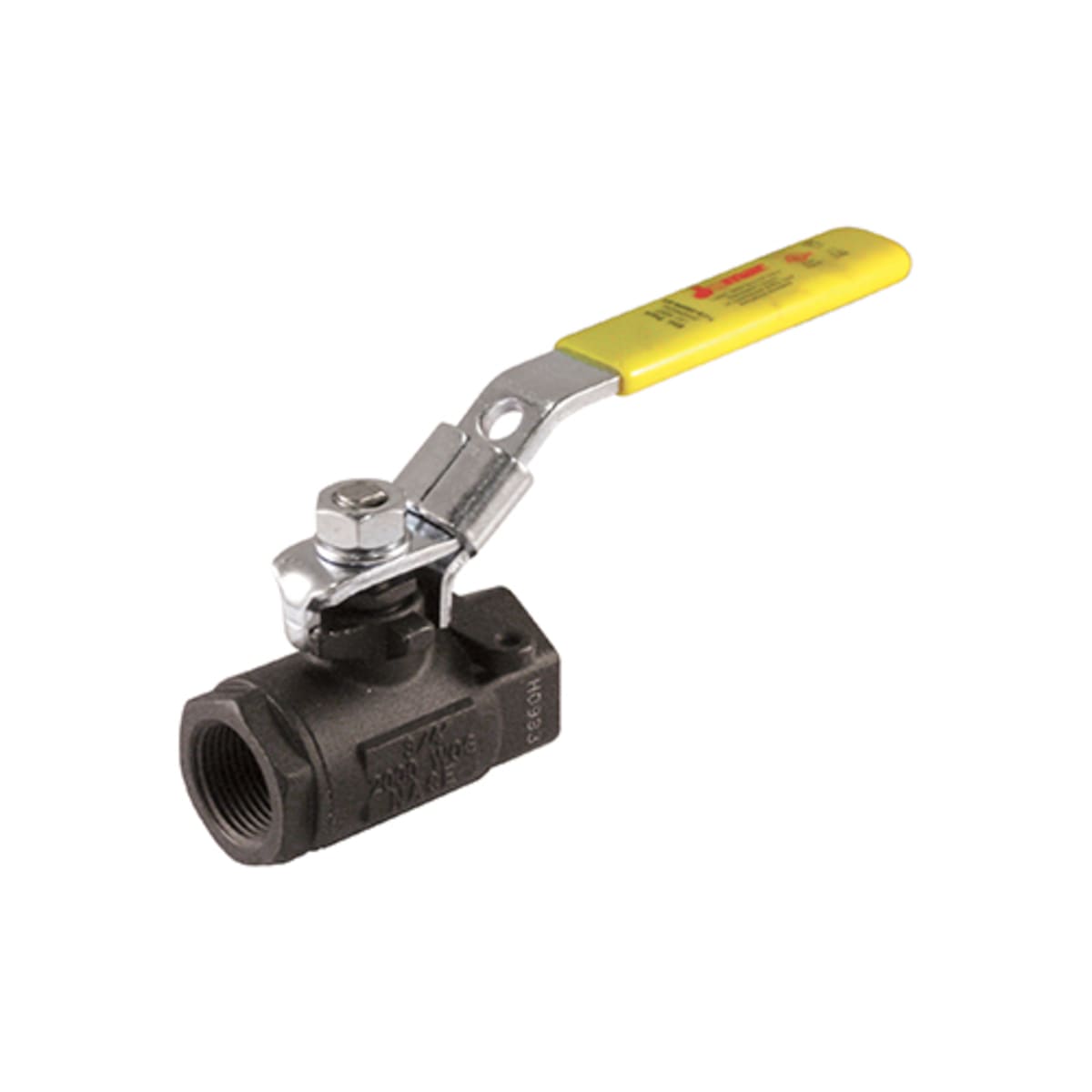

Jomar 100-955 Standard Port, 2 Piece, Threaded Connection, 2000 WOG, Stainless Steel Bal

Product Description

Jomar 100-955 is a 2-piece ball valve designed for high performance. This valve features a threaded connection and a pressure rating of up to 2000 WOG. Constructed with stainless steel, it ensures durability and reliability in various applications.

• Solid ball construction for secure operation
• Latch-lock handle for open or closed position
• 100% leak tested for assurance of quality

Product Highlights

This valve is suitable for water, steam, and gas applications, providing a secure flow control solution.

Product Information

Standard Information

• Brand: Jomar
• MPN: 100-955

Technical Specifications

• Actuator Type: Latch-Lock Handle
• Ball Material: Stainless Steel
• Body Material: WCB Carbon Steel
• End Style: NPT
• Nominal Size: 1 inch
• Port Type: Standard
• Pressure Rating: 2000 psi WOG
• Inlet to Outlet Length: 3.23 inches
• Top to Inlet Center: 2.56 inches
• Softgoods Material: Hostaflon TFM/RPTFE
• Trim Material: 316 Stainless Steel Stem and Hostaflon TFM 1600 Seat
• Standards/Approval: ANSI B1.20.1, API 598, MSS SP-110, NACE Certified
