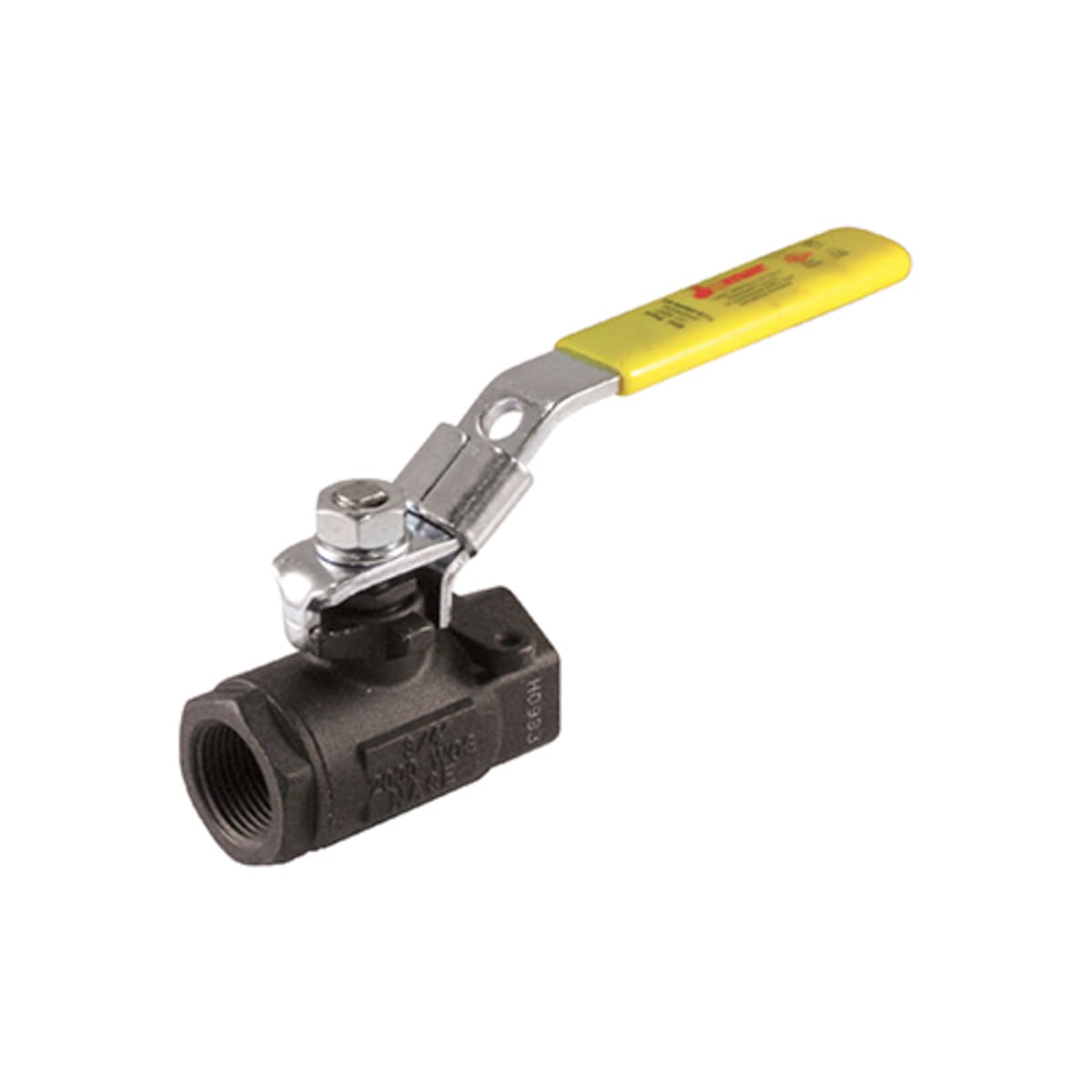

Jomar 100-954 Standard Port, 2 Piece, Threaded Connection, 2000 WOG, Stainless Steel Ball

Product Description

The Jomar Valve 100-954 is a stainless steel ball valve designed for durability and high-pressure applications. This valve features a standard port configuration and a two-piece design. It is rated for 2000 psi WOG, making it suitable for various piping systems. The latch-lock handle actuator enables easy operation, allowing the valve to be locked in either an open or closed position.

• Solid stainless steel construction
• Latch-lock handle for secure operation
• Rated for 2000 psi water, oil, and gas

Product Highlights

This ball valve is ideal for plumbing professionals requiring reliable valves in high-pressure systems. The 3/4 inch nominal size and NPT end style ensure compatibility with standard piping.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 100-954

Technical Specifications

• Actuator Type: Latch-Lock Handle
• Ball Material: Stainless Steel
• Body Material: WCB Carbon Steel
• End Style: NPT
• Inlet to Outlet Length: 2.8 inches
• Nominal Size: 3/4 inches
• Port Type: Standard
• Pressure Rating: 2000 psi WOG
• Softgoods Material: Hostaflon TFM/RPTFE
• Top to Inlet Center: 2.4 inches
• Trim Material: 316 Stainless Steel Stem and Hostaflon TFM 1600 Seat
• Type: 2-Piece
