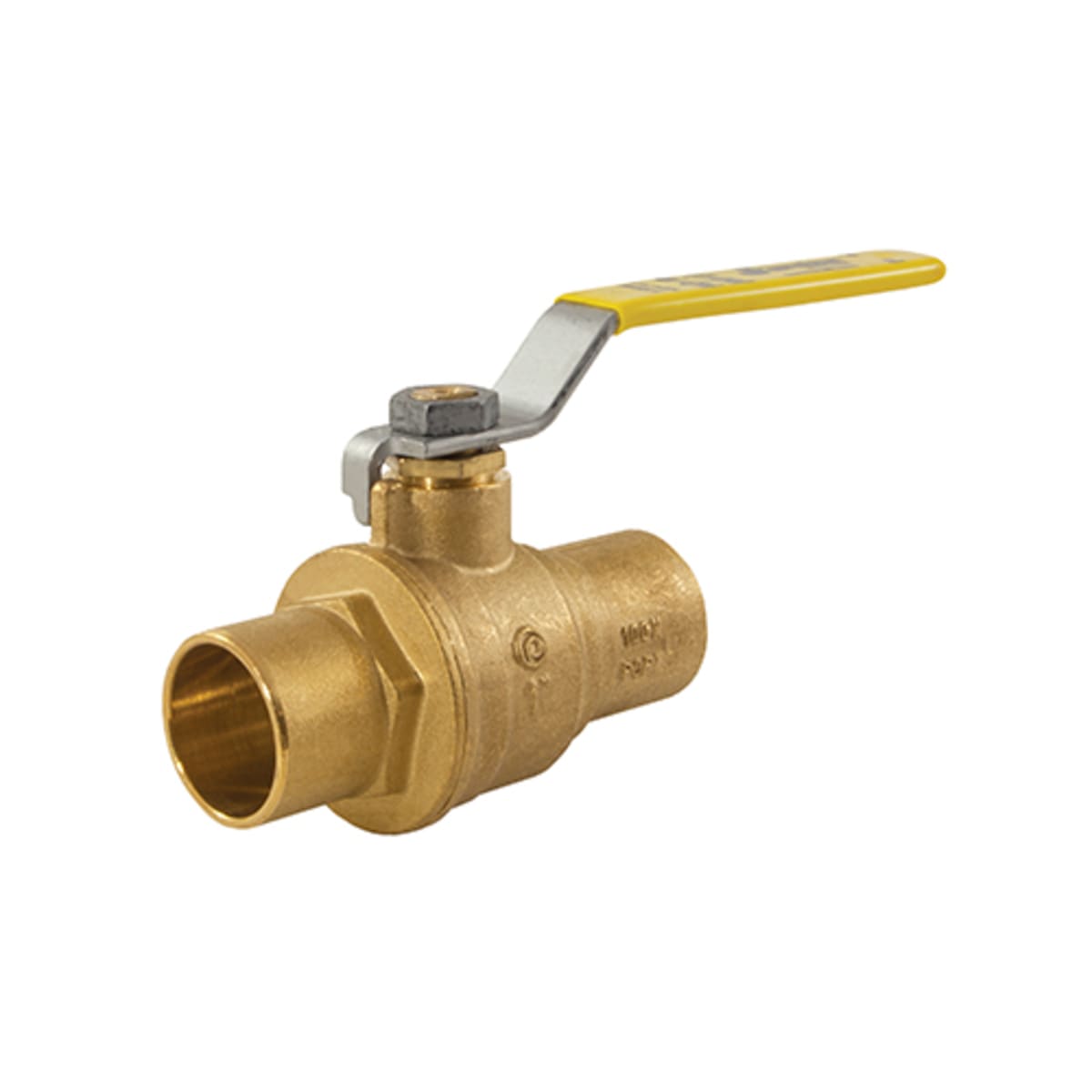

JOMAR 100-807 Full Port, 2 Piece, Solder Connection, 600 WOG

Product Description

JOMAR 100-807 is a ball valve designed for applications with high pressure and temperature. This full port, two-piece valve has a solder connection and a pressure rating of six hundred WOG. It features a TEA coated brass ball and is tested for leaks. The valve measures one and one-half inches nominal size and has an orifice of one point forty-nine inches.

• Full port design enhances flow efficiency.
• Durable brass construction ensures longevity.
• 100% leak tested, providing reliability and safety.

Product Highlights

JOMAR 100-807 is ideal for several plumbing applications, especially where solder connections are used. Its robust design makes it suitable for both residential and commercial installations.

Product Information

Standard Information

• Manufacturer: JOMAR
• Part Number: 100-807

Technical Specifications

• Ball Material: TEA Coated Brass
• Body Material: Brass
• End Style: Solder
• Inlet to Outlet Length: 5.07 inches
• Nominal Size: 1-1/2 inches
• Orifice Size: 1.49 inches
• Port Type: Full
• Pressure Rating: 600 WOG
• Softgoods Material: Hostaflon TFM/FKM
• Top to Inlet Center: 3.31 inches
• Trim Material: Brass Stem and Hostaflon TFM 1600 Seat
• Type: 2-Piece
