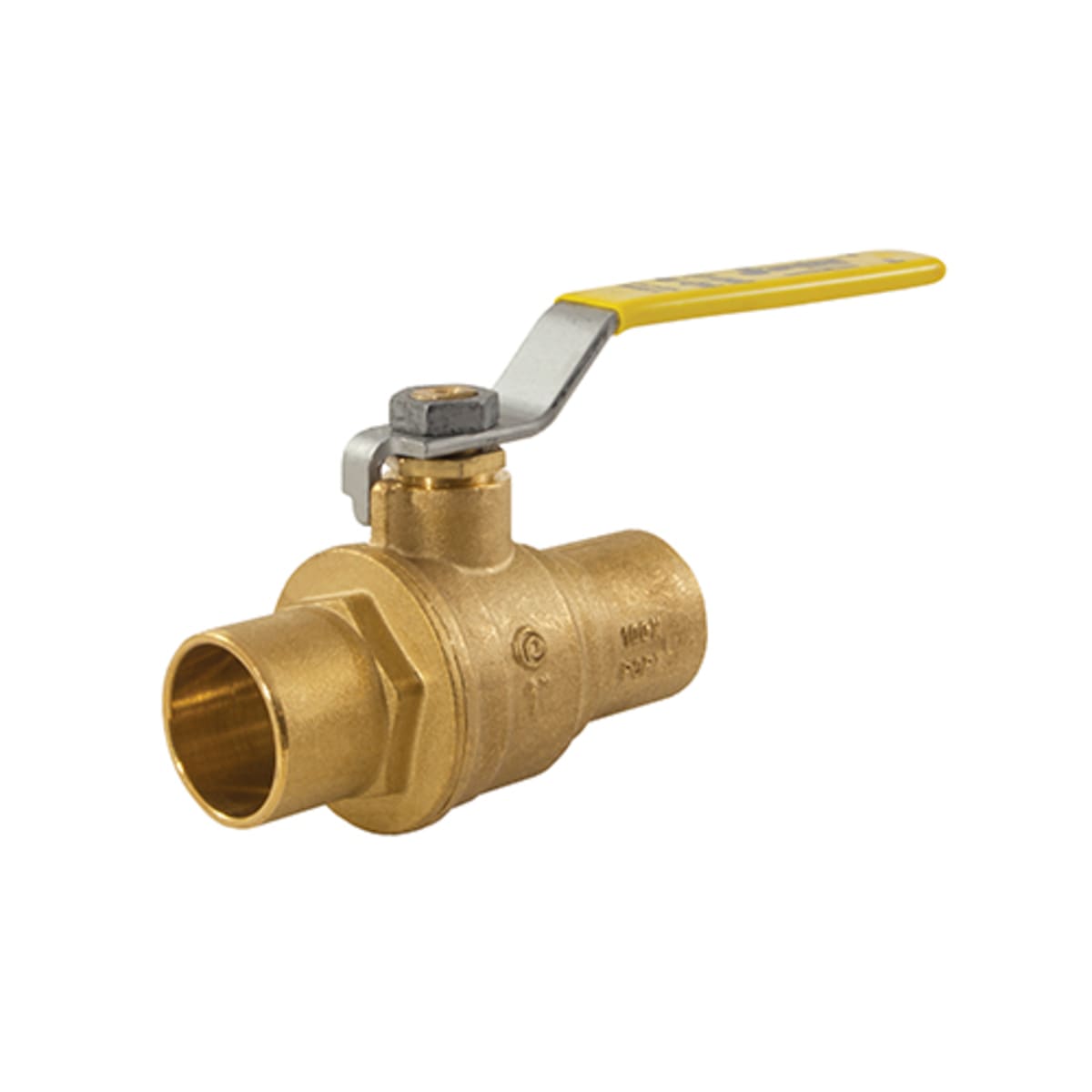

JOMAR 100-804 Full Port, 2 Piece, Solder Connection, 600 WOG

Product Description

The JOMAR 100-804 is a full port, two-piece solder connection ball valve designed for high-pressure applications. This valve features a TEA coated brass ball and a brass body that ensures durability and effective performance. It is rated for 600 psi WOG, making it suitable for various plumbing systems.

• Inlet to outlet length of three point two six inches
• Nominal size of three fourths of an inch
• Triple sealing stem with FKM O-Rings

Product Highlights

This ball valve is ideal for installation in water and steam systems, providing reliability and longevity in service.

Product Information

Standard Information

• Manufacturer: JOMAR
• Material: Brass

Technical Specifications

• Ball Material: TEA Coated Brass
• Body Material: Brass
• Pressure Rating: 600 psi WOG
• End Style: Solder
• Nominal Size: 3/4 in
• Port Type: Full
• Inlet to Outlet Length: 3.26 in
• Top to Inlet Center: 2.05 in
• Softgoods Material: Hostaflon TFM/FKM
• Type: 2-Piece
