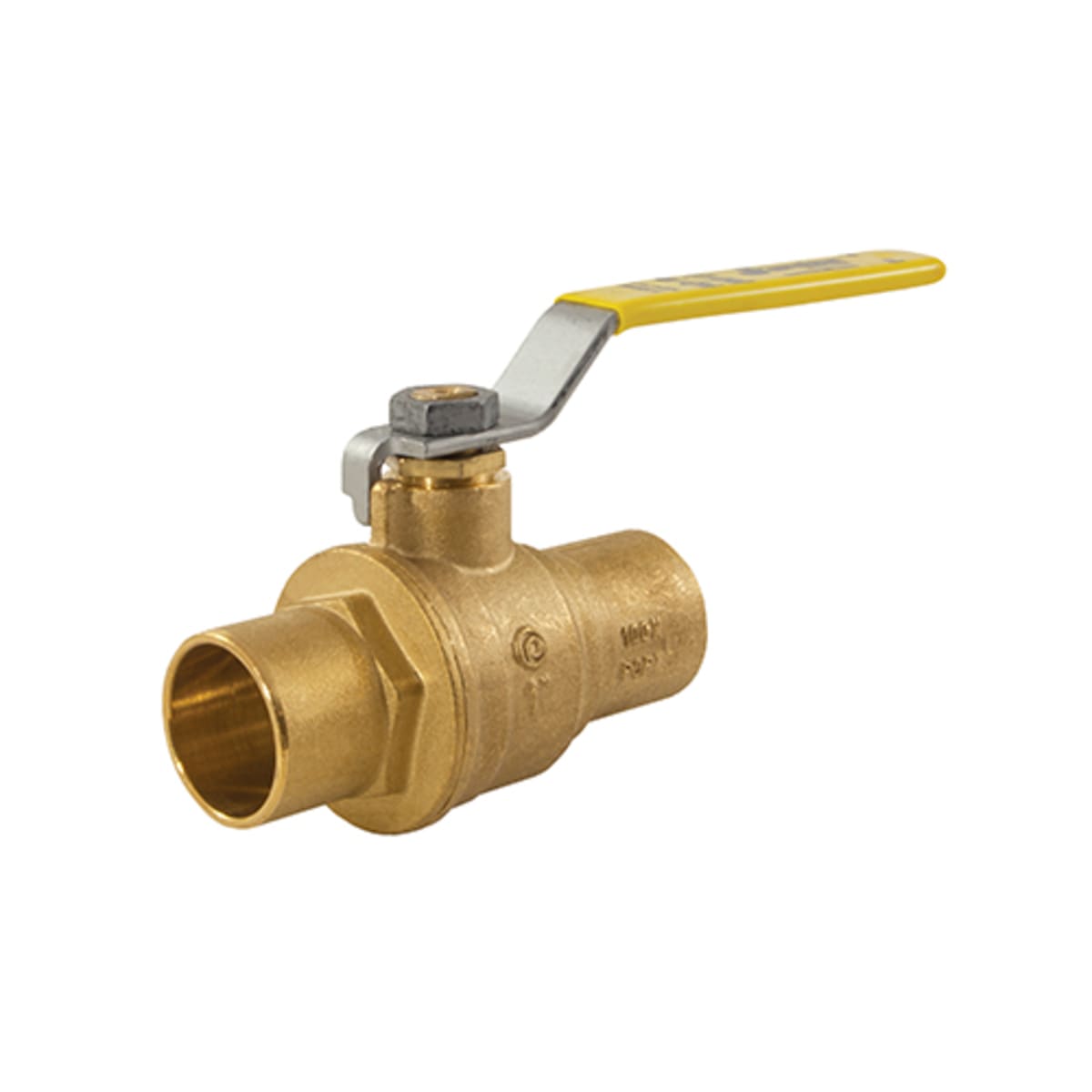

Jomar 100-803 Full Port, 2 Piece, Solder Connection, 600 WOG

Product Description

Jomar 100-803 is a full port ball valve designed for solder connections with a pressure rating of six hundred WOG. This two-piece valve features a TEA coated brass ball and is built for durability and reliability in plumbing applications. It has a length of two point four eight inches from inlet to outlet and a height of one point five six inches from the top to the inlet center.

• Made from brass with Hostaflon TFM soft goods
• Blow-out proof stem design
• Lifetime warranty on leak-proof stem

Product Highlights

This valve is ideal for use in a variety of piping systems. It accommodates high pressure and offers effective sealing with multiple O-rings and PTFE seals, making it suitable for both water and steam applications.

Product Information

Standard Information

• Brand: Jomar
• MPN: 100-803

Technical Specifications

• Ball Material: TEA Coated Brass
• Body Material: Brass
• Nominal Size: 1/2 in
• End Style: Solder
• Pressure Rating: 600 psi WOG
• Trim Material: Brass Stem and Hostaflon TFM 1600 Seat
• Type: 2-Piece
• Port Type: Full
• Softgoods Material: Hostaflon TFM/FKM
