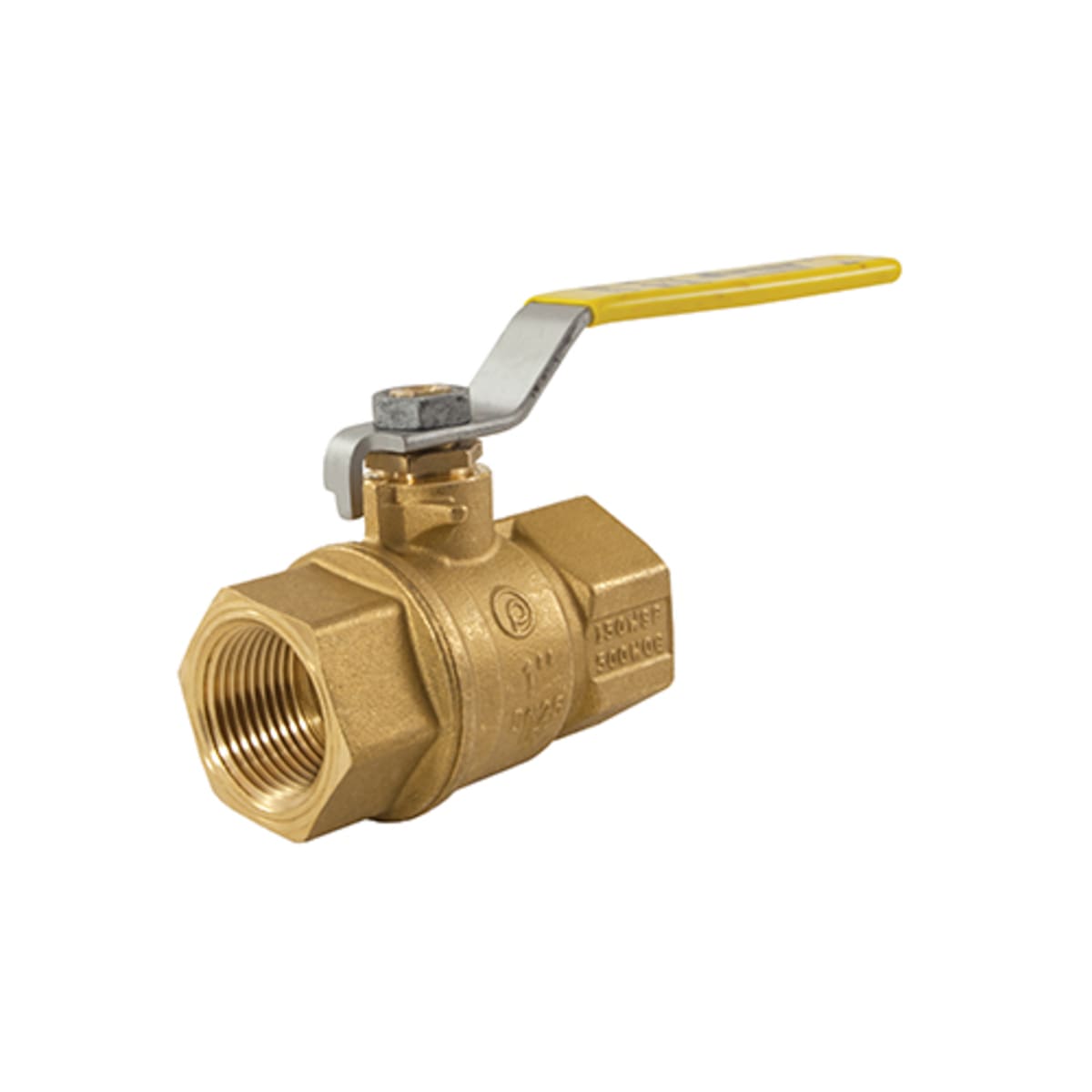

JOMAR 100-708 Full Port 2 Piece Threaded Connection 600 WOG

Product Description

The JOMAR 100-708 is a 2-piece, full port ball valve designed for robust applications. It features a threaded connection for ease of installation and a pressure rating of 600 WOG. This valve is constructed with TEA coated brass for durability and reliability.

• Blow-out proof stem
• Triple sealing system with two FKM O-rings and PTFE seal
• Leak-proof stem with a lifetime warranty

Product Highlights

This valve is ideal for plumbing applications requiring a dependable shut-off. Its full port design ensures minimal flow restriction and enhances performance.

Product Information

Standard Information

• Manufacturer: JOMAR
• Part Number: 100-708

Technical Specifications

• Ball Material: TEA Coated Brass
• Body Material: Brass
• Nominal Size: 2 in
• Pressure Rating: 500 psi WOG
• End Style: NPT
• Inlet to Outlet Length: 5 in
• Top to Inlet Center: 3.4 in
• Trim Material: Brass Stem and Hostaflon TFM 1600 Seat
