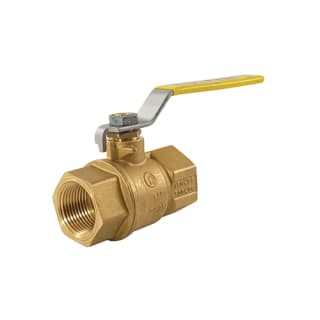

Jomar 100-706 Full Port, 2 Piece, Threaded Connection, 600 WOG

Product Description

The Jomar 100-706 is a full port, two-piece ball valve designed for threaded connections. This valve is rated for 600 WOG and features a brass body and a TEA coated brass ball. It is suitable for various plumbing applications where reliable flow control is needed.

• Full port design for maximum flow
• Leak-proof stem with a lifetime warranty
• 100% leak tested for safety and reliability

Product Highlights

This valve is ideal for HVAC systems, irrigation, and industrial applications. It can handle high water and steam pressures, making it versatile for many environments.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 100-706

Technical Specifications

• Body Material: Brass
• Ball Material: TEA Coated Brass
• Nominal Size: 1-1/4 inches
• Pressure Rating: 500 psi WOG
• Inlet to Outlet Length: 3.8 inches
• Top to Inlet Center: 2.59 inches
• Softgoods Material: FKM/Hostaflon TFM
• Standards/Approval: ANSI B1.20.1, CSA Certified, FM Approved, MSS SP-110
